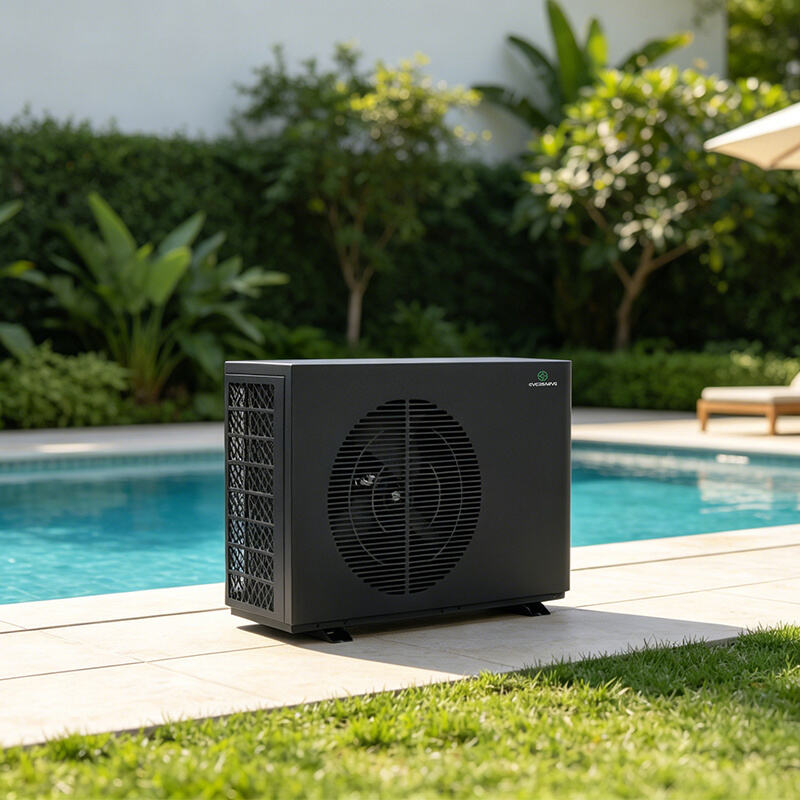

R290 DC Inverter Heat Pump

This fully variable frequency swimming pool heat pump prioritizes environmental protection, energy saving, and intelligent control, making it a professional constant temperature heating device suitable for modern swimming pools.

The heat pump uses high-quality R290 natural refrigerant, which is low-carbon, environmentally friendly, and highly compliant, fully meeting European and American environmental export standards. Equipped with a fully variable frequency operating system, it can precisely regulate the operating speed and automatically match the heating load, ensuring stable control of the pool water temperature.

This swimming pool heat pump incorporates multiple intelligent features, including a 5G/2.4G dual-band WiFi module and a mature IoT system, allowing for remote control via smartphone. It also has a reserved RS485 communication port for connection to third-party smart home and monitoring platforms, enabling systematic management. It features SG-READY smart grid compatibility and supports photovoltaic linkage control, allowing connection to photovoltaic power generation systems to reduce operating energy consumption through clean energy.

This swimming pool heat pump boasts mature operating logic, combining the advantages of constant temperature heating, intelligent control, and low-energy operation. Its large-capacity heating configuration can meet the uniform heating needs of large pools, making it suitable for long-term, high-frequency use, and combining durability and practicality.

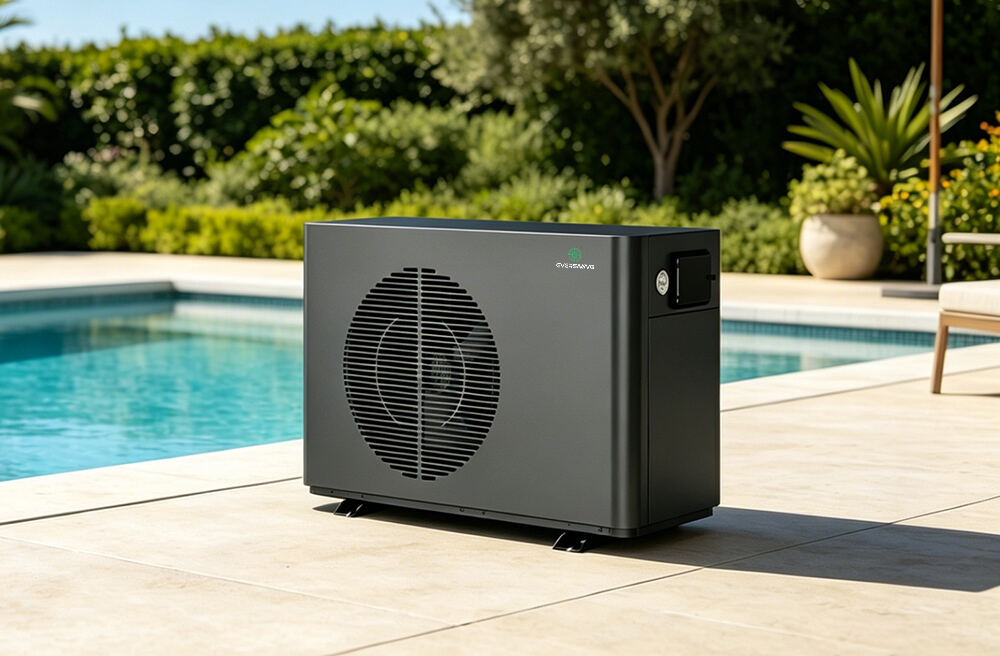

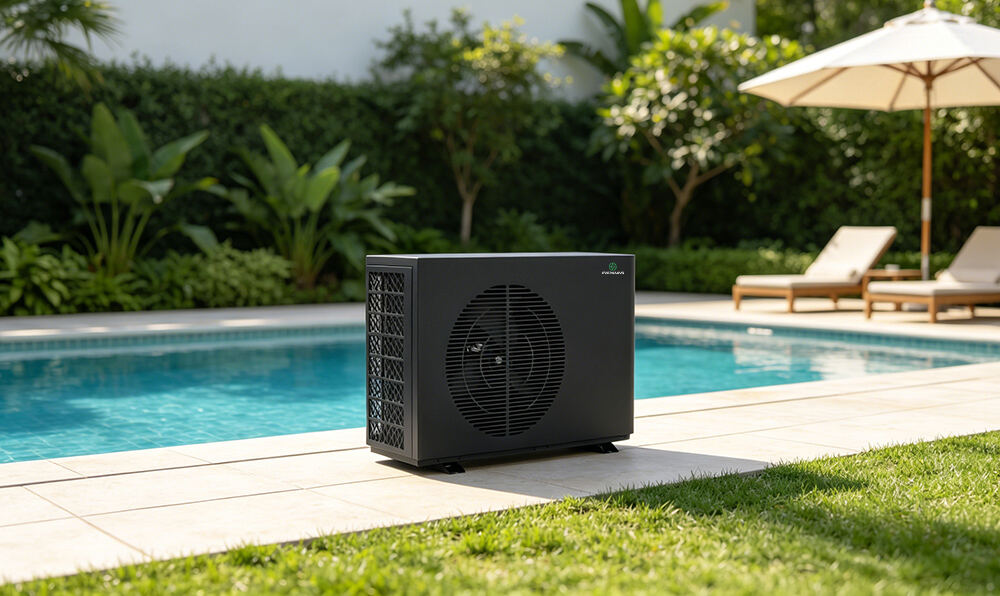

详情1.jpg 详情2.jpg

Model	WF-BYC-007TJ1	WF-BYC-010TJ1	WF-BYC-013TJ1	WF-BYC-016TJ1	WF-BYC-020TJ1	WF-BYC-027TJ1
* Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out
Heating Capacity (kW)	7.3～2.8	9.7～3.7	12.5～4.7	15.9～6	20～7.6	26.8～10.2
Power lnput (kW)	1.12～0.26	1.47～0.35	1.88～0.45	2.41～0.57	3.02～0.72	4.06～0.97
Current lnput (A）	5.1～1.2	6.7～1.6	8.6～2	11～2.6	13.8～3.3	18.5～4.4
COP	10.6～6.6	10.5～6.6	10.6～6.6	10.6～6.6	10.6～6.6	10.6～6.6
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out
Heating Capacity (kW)	5.6～2.1	7.2～2.7	9.2～3.5	12～4.5	15～5.6	19.7～7.3
Power lnput (kW)	1.15～0.29	1.54～0.4	1.95～0.51	2.52～0.62	3.18～0.83	4.17～1.08
Current lnput (A）	5.4～1.3	7～1.8	8.9～2.3	11.6～2.8	14.5～3.8	18.9～4.9
COP	7.2～4.9	7.6～4.9	7.6～5	7.2～4.8	7.6～5	7.6～5
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
Cooling Capacity (kW)	4.3～2.4	5.4～2.9	6.9～3.7	8.9～4.8	11.1～6	14.6～7.9
Power lnput (kW)	0.85～0.35	1.08～0.44	1.38～0.56	1.79～0.74	2.23～0.9	2.94～1.19
Current lnput (A）	4～1.7	4.9～2	6.3～2.5	8.1～3.4	10.1～4.1	13.4～5.4
EER	6.9～5.1	6.6～5	6.7～5	6.9～5	6.7～5	6.7～4.9
Power supply	220～240V/50（60）Hz
Max power input (kW)	1.76	2.3	2.85	3.3	4.99	5.96
Rated power (kW)	1.15	1.54	1.95	2.52	3.18	4.17
Rated current (A)	5.2	7	8.9	11.7	14.5	19
Fuse or circuit breaker (A)	10	15	15	20	25	30
Water flow (m³/h)	2.5	3.5	4.5	5.5	6.5	9
Refrigerant	R290
Heat Exchanger	Titanium
Air Flow Direction	Horizonta
Automatic defrosting	by 4 way valve
Heating temperatuer range (°C）	8～40
Cooling temperatuer range (℃)	8～28
Operating range (℃)	-15～45
Min pressure/max pressure (Mpa）	0.15/3
Water proof level	lPX4
Net Dimensions (mm) (LWH)	914394640	914394640	1074429733	1074429733	1205480800	1205480800
Package Dimensions (mm) (LWH)	973455654	973455654	1136496755	1136496755	1280540830	1280540830
Net Weight (kg)	54	57	68	72	85	90
Gross Weight (kg)	64	67	78	82	95	100

This swimming pool heat pump is suitable for a wide range of scenarios, from private home pools to commercial public pools, adapting to various environments. It features remote, intelligent control that is simple and convenient, requiring no dedicated personnel to monitor. It easily regulates pool water temperature, creating a constant-temperature pool and enhancing the user's leisure experience.

Heat pump is also ideal for commercial settings such as guesthouses, resorts, and hotels, providing stable operation and controllable energy consumption to meet the high-traffic, long-term, uninterrupted temperature control requirements of commercial settings.

The swimming pool heat pump is also suitable for various entertainment venues such as gyms, swimming pools, playgrounds, and water recreation facilities. With strong heating capacity, it is suitable for large pools, providing even heating and precise temperature control. Whether for indoor or outdoor heated pools, it operates stably, adapting to the installation and renovation needs of different sites.

It uses high-quality R290 natural refrigerant, is compliant and environmentally friendly, and is particularly suitable for Europe and America, making it ideal for overseas private estates and commercial pool projects.

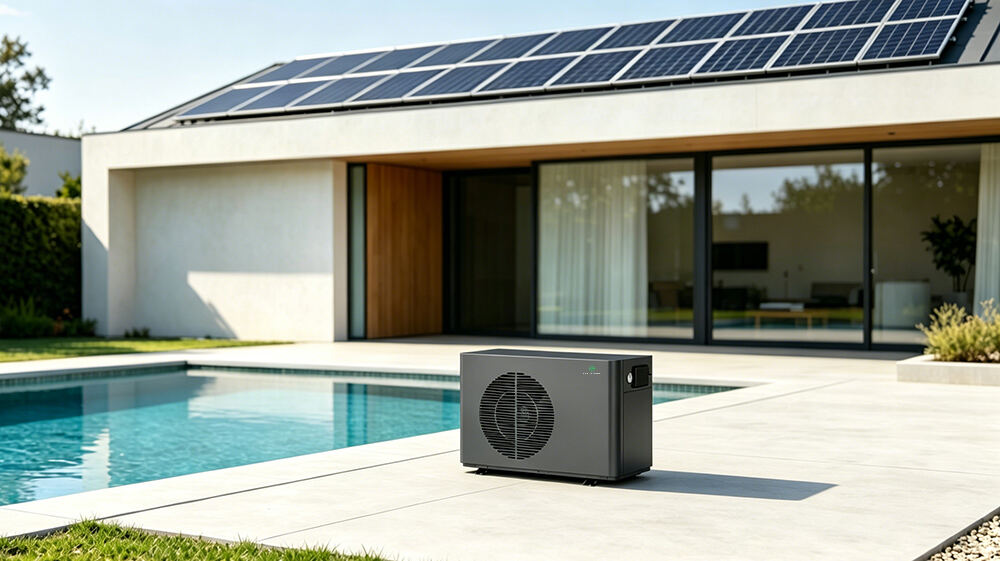

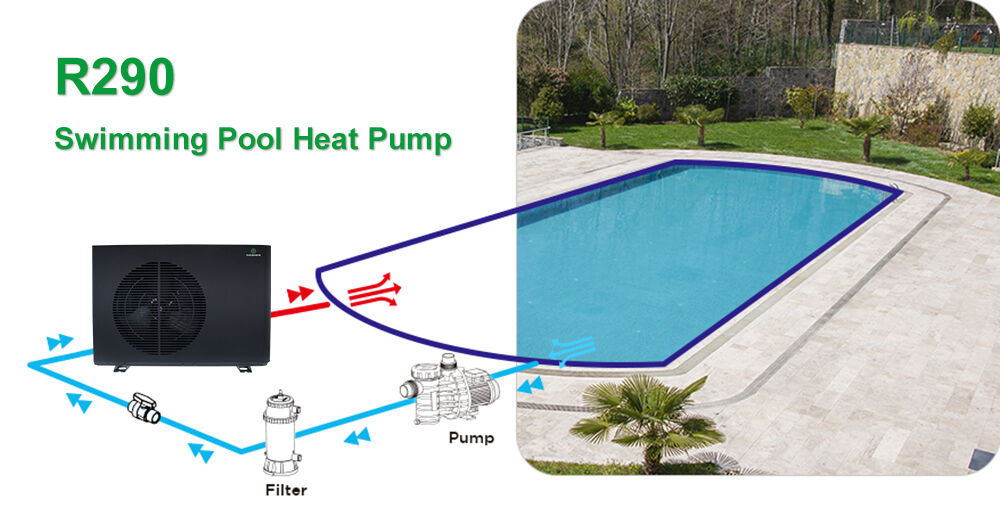

详情3.jpg 详情4.jpg

Compared to traditional heating equipment, this swimming pool heat pump boasts significant advantages in intelligence and energy efficiency. It uses R290 environmentally friendly refrigerant, which is low-carbon and pollution-free, complies with environmental regulations, and meets export compliance requirements.

The full frequency conversion system intelligently regulates energy consumption, providing precise temperature control and lower energy consumption. Combined with photovoltaic linkage, it can utilize solar energy for auxiliary operation, significantly reducing electricity costs.

The swimming pool heat pump features built-in SG-READY smart grid adaptation, rationally allocating power and further optimizing energy utilization. Dual-band WiFi with IoT functionality supports remote monitoring and parameter adjustment for convenient operation; a reserved RS485 port allows connection to third-party systems, adapting to intelligent integration projects.

The swimming pool heat pump delivers strong overall heating performance, ensuring even heating even in large pools. It operates stably with low energy consumption, resulting in low long-term maintenance costs. Overall, the heat pump balances environmental friendliness, intelligence, and practicality, making it an excellent choice for high-end pool temperature control and export.

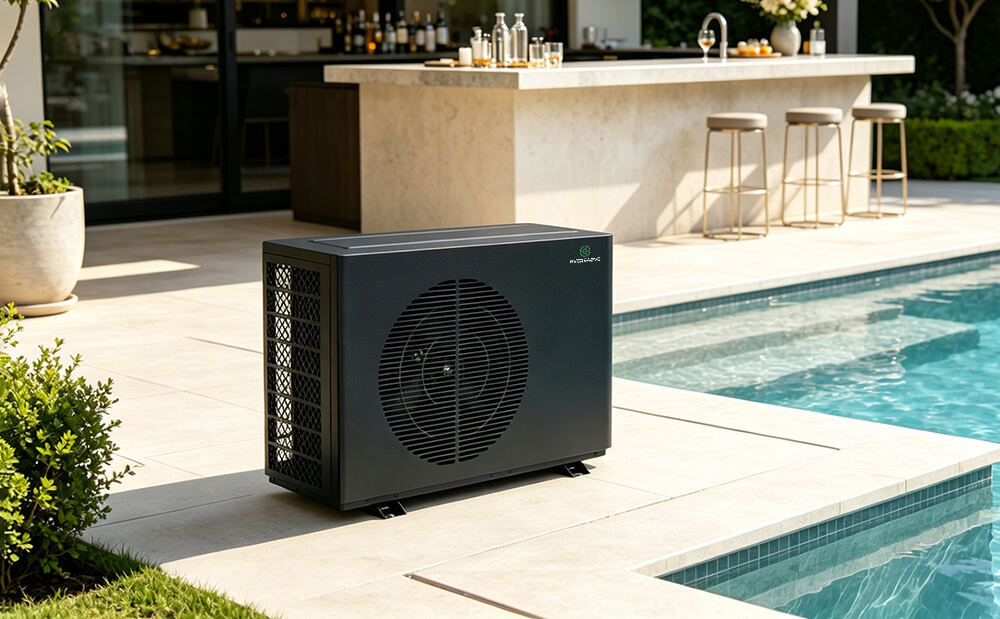

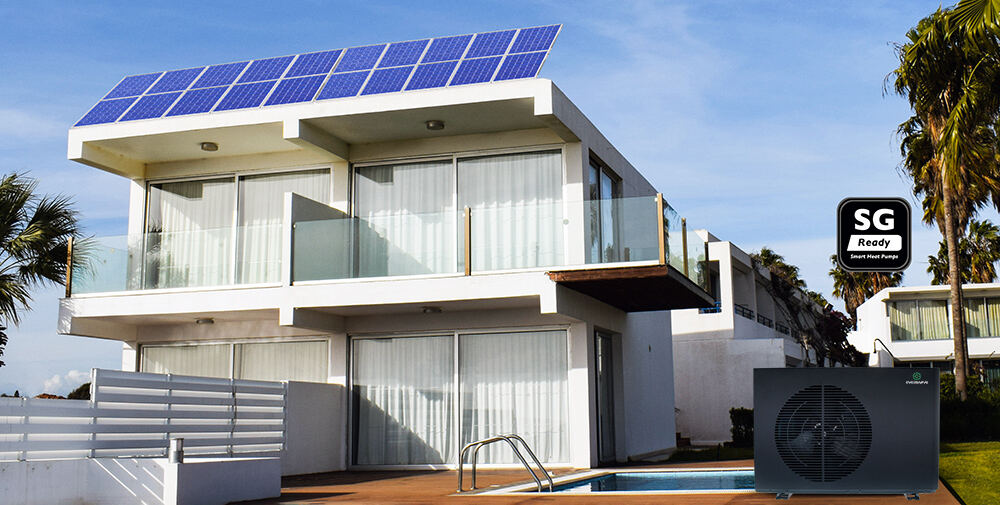

详情5.jpg 详情6.jpg
