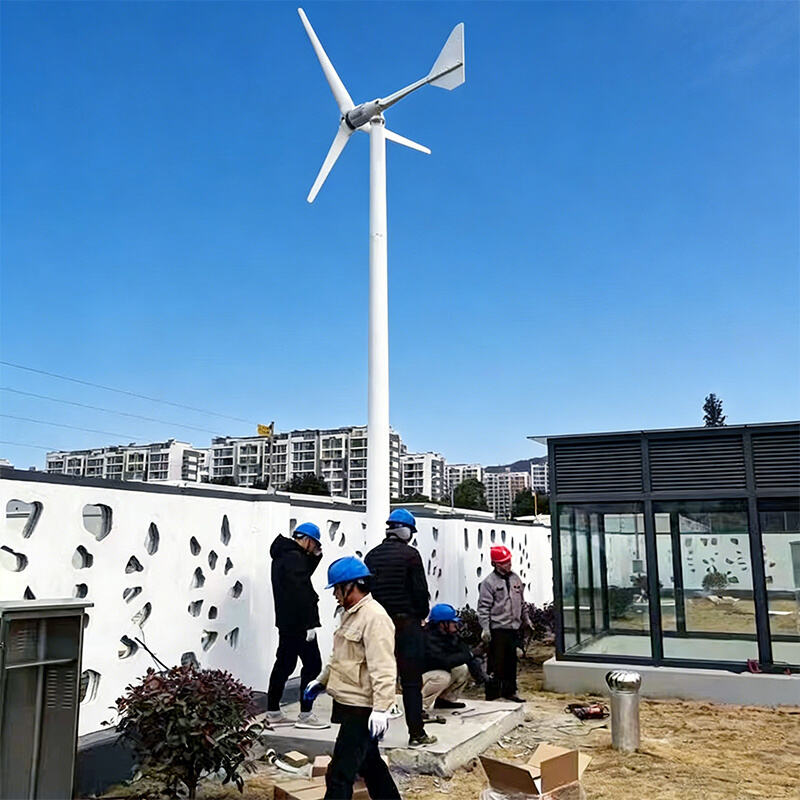

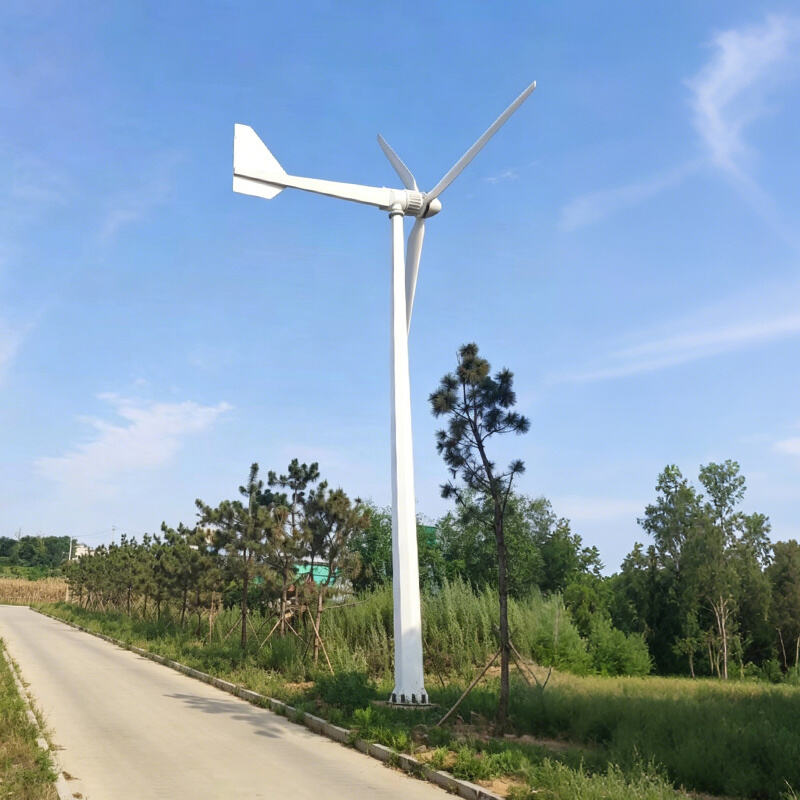

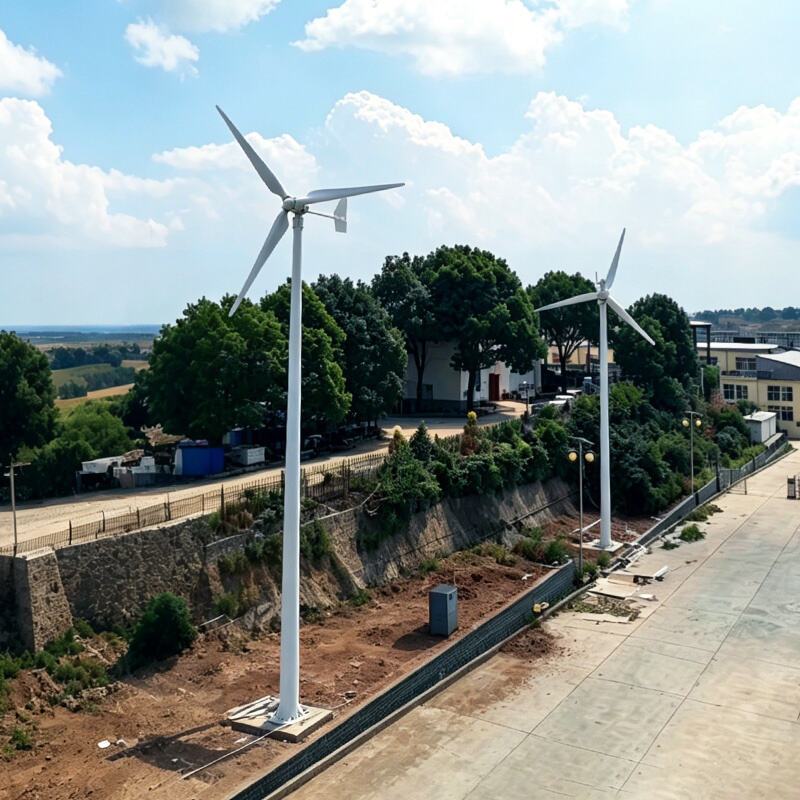

L Type Low Start-up Speed Wind Turbine

This small horizontal axis wind turbine is compact, lightweight, and easy to install. It works by converting wind energy into electricity, making it a clean energy device that aligns perfectly with environmental protection principles.

This wind turbine features a low starting wind speed, a horizontal-axis core structure, and blades made of high-strength materials with optimized aerodynamic design, resulting in low wind resistance and high wind capture efficiency, allowing for stable startup even in low wind speeds. It boasts high power generation efficiency, automatically adjusting its orientation to the wind based on wind speed and direction, ensuring stable performance and consistent power output, making it an ideal choice for small-scale clean energy power supply.

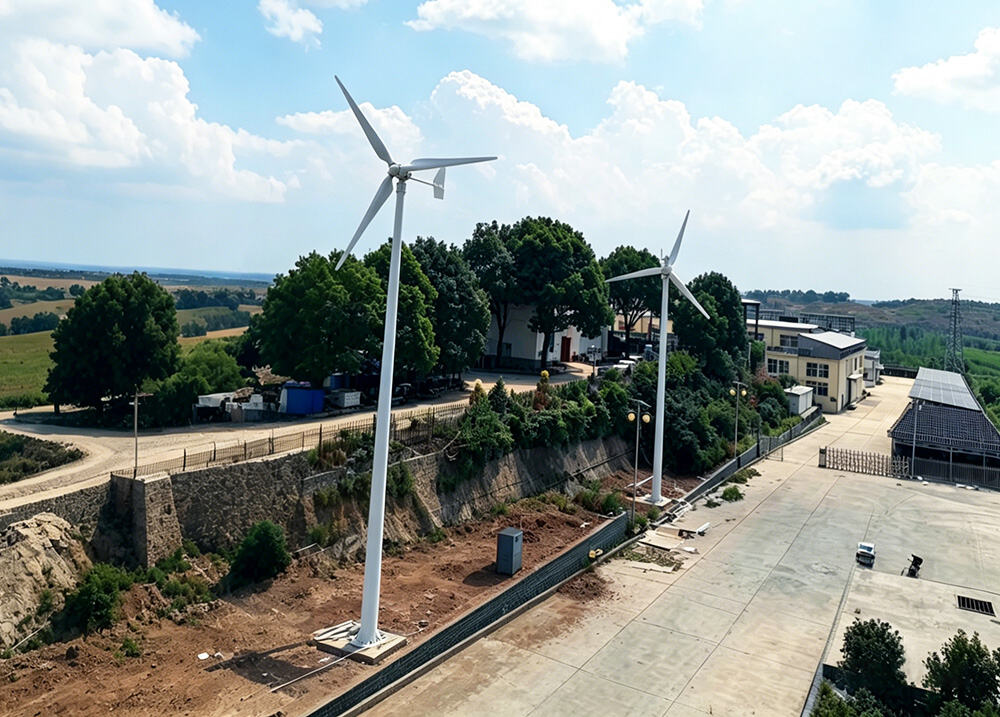

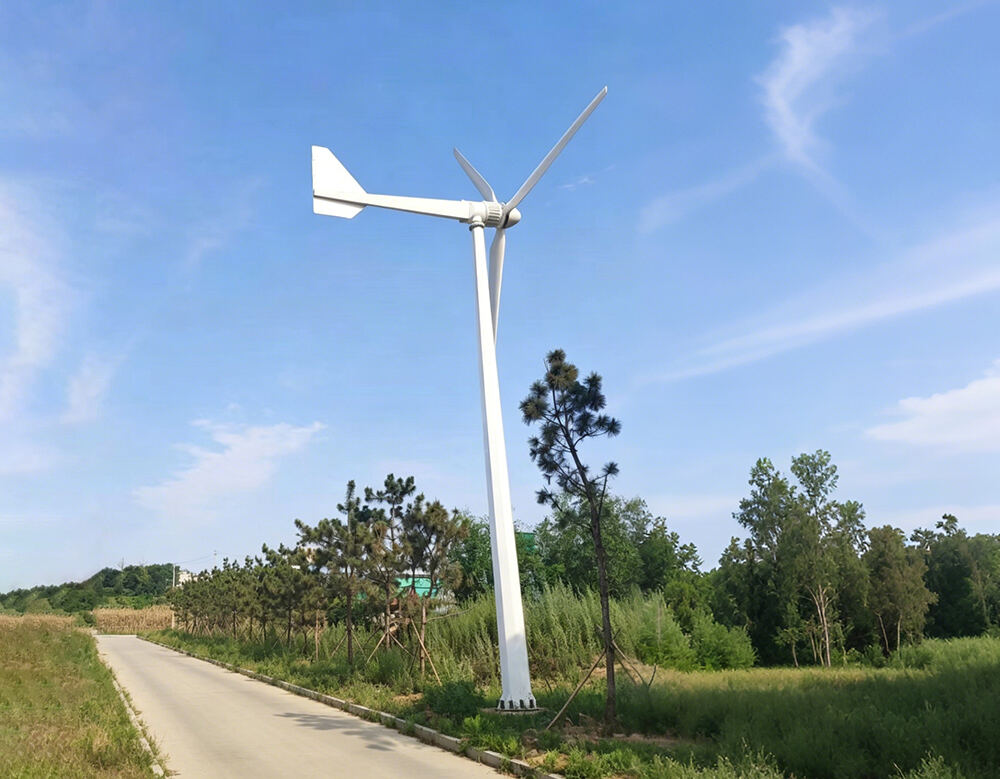

详情1.jpg 详情2.jpg

Model	WF-L1000	WF-L1500	WF-L2000	WF-L2500	WF-L3000
Rated Power	1000W	1500W	2000W	2500W	3000W
Rated Voltage	48V/96V/120V/220V/240V
Start the Wind Speed	2m/s
Rated Wind Speed	11m/s
Safe Wind Speed	≤50m/s
Fan Blade Diameter	2.6m	2.9m	3.1m/3.2m	3.8m	4.1m
Number of Blades	3
Blade Material	Reinforced FRP
Fuselage Material	Reinforced die-cast aluminum
Magnetic Steel Material	NdFeB
Generator Type	Three-phase AC permanent magnet synchronous generator
Control Mode	Electromagnetic brakes
Wind Direction Adjustment	Automatically adjusts the windward angle
Service life	≥20 years/
Degree of Protection	IP54
Net / Gross Weight	48kg/52kg	53kg/57kg	58kg/62kg	85kg/100kg	95kg/110kg
Packing Size	674826cm+ 1302727cm	674826cm+ 1472727cm	674826cm+ 1622727cm	753737cm+ 1852332cm +74525	753737cm+ 2002332cm +74525

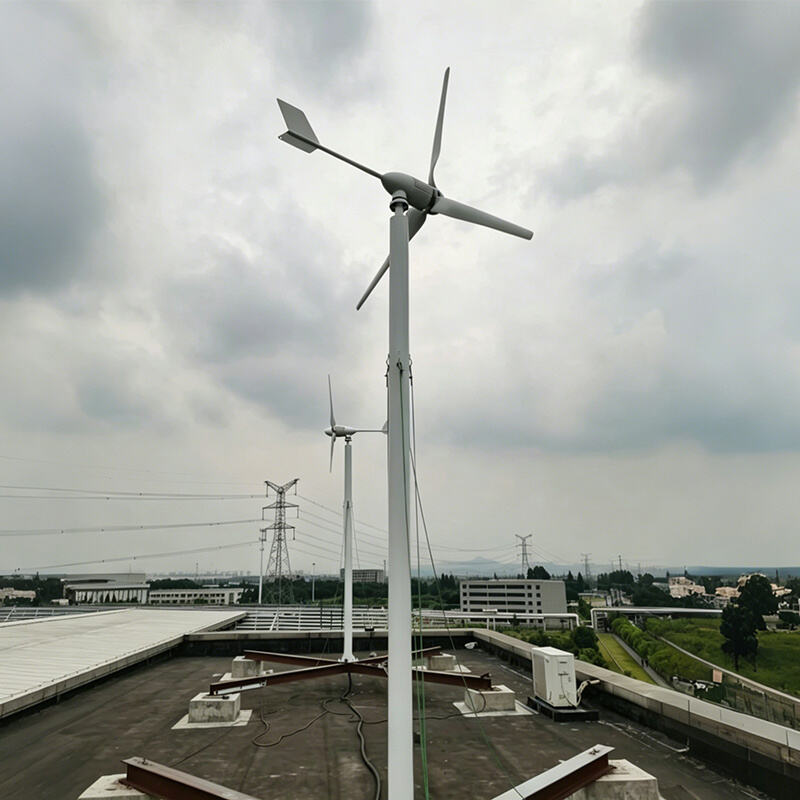

This horizontal axis wind turbine has a wide range of applications. Being a small wind turbine, its compact size, light weight, and small footprint make it ideal for home use. It can be installed in self-built houses, villas, and yards. If the yard area is small, it can also be installed on the roof, meeting daily household electricity needs and reducing electricity bills.

It is also suitable for use in parks, farms, and factories. It can serve as a supplemental power source, reducing the operator's dependence on the grid, offering long-term benefits from a one-time investment. In the long run, it effectively reduces operating costs and aligns well with current low-carbon and environmentally friendly requirements.

This horizontal axis wind turbine is particularly suitable for areas far from the power grid. It can be used in mountain outposts, field base stations, and other areas where the power grid is unavailable or grid connection is too costly. When combined with photovoltaic panels, controllers, and batteries, off grid systems can be customized to meet specific customer needs. With its stable power generation performance, it effectively solves outdoor power problems in these locations and can operate stably for extended periods. Furthermore, it can also be used in distributed energy projects and rural revitalization initiatives, helping small areas achieve energy self-sufficiency.

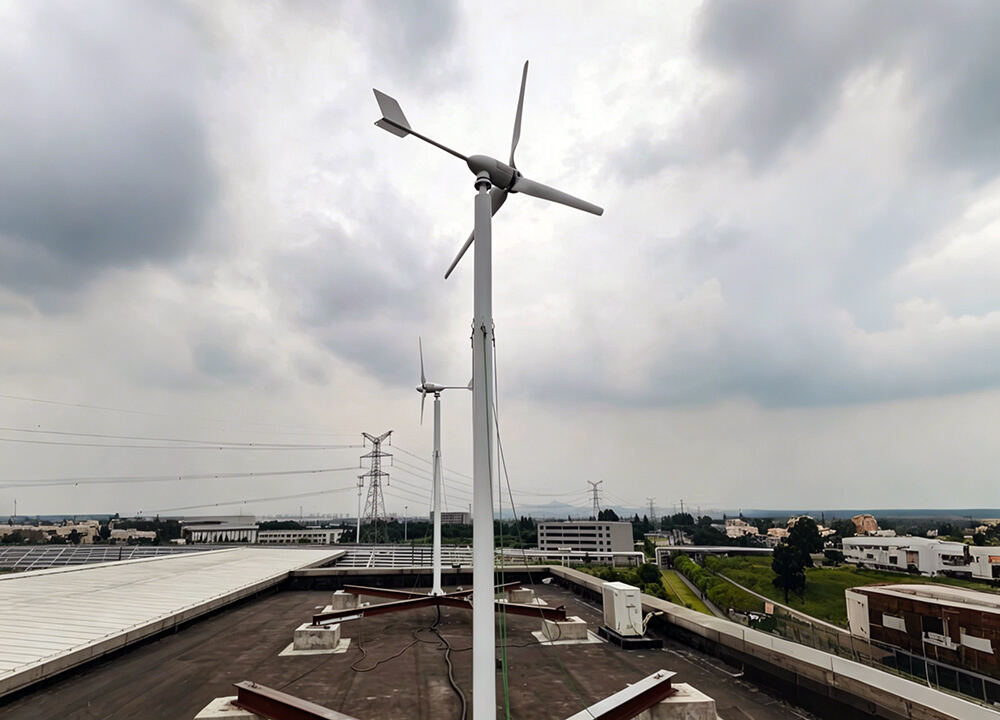

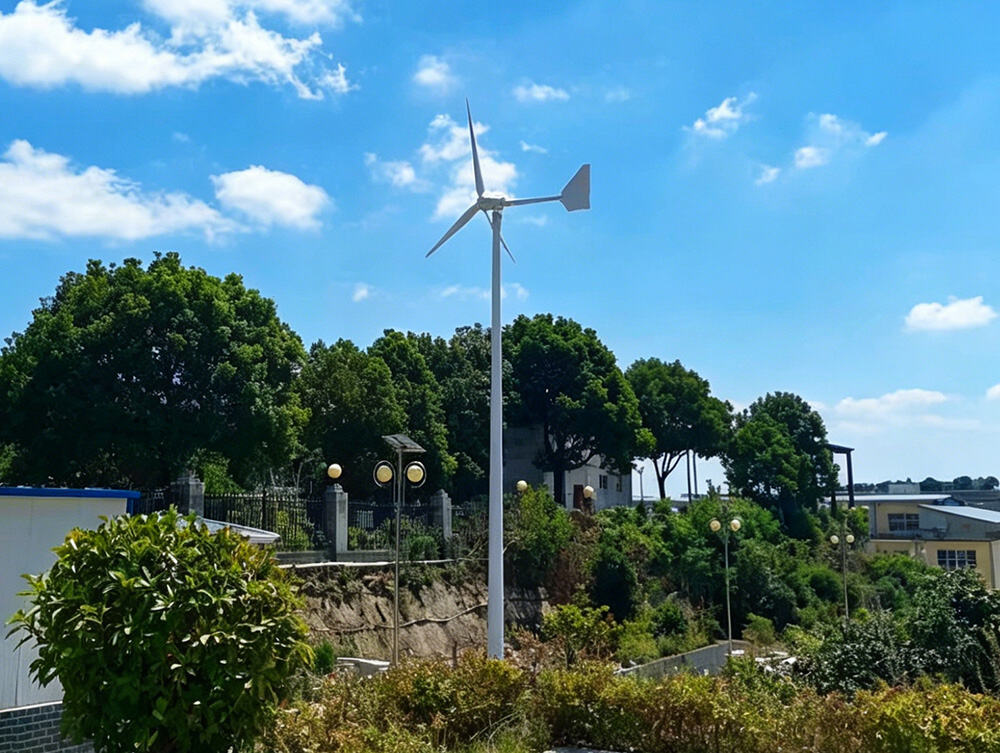

详情3.jpg 详情4.jpg

This horizontal axis wind turbine is highly efficient and energy-saving, and can meet various power supply needs. Its biggest advantage is its low starting wind speed and high power generation efficiency. The core adopts a horizontal axis structure, which is the most mature and reliable structural type among small wind turbines, ensuring stable operation and guaranteed power generation efficiency. The blades have a large wind-catching area and low wind resistance; the blades and tail boom can be adjusted with the wind direction for highly efficient wind capture and power generation.

This horizontal axis wind turbine operates stably and reliably, with a robust structure and long service life. Its compact size allows for installation in conventional sites. In addition, its simple structure requires only periodic blade cleaning after installation, eliminating the need for professional technicians and resulting in extremely low maintenance costs.

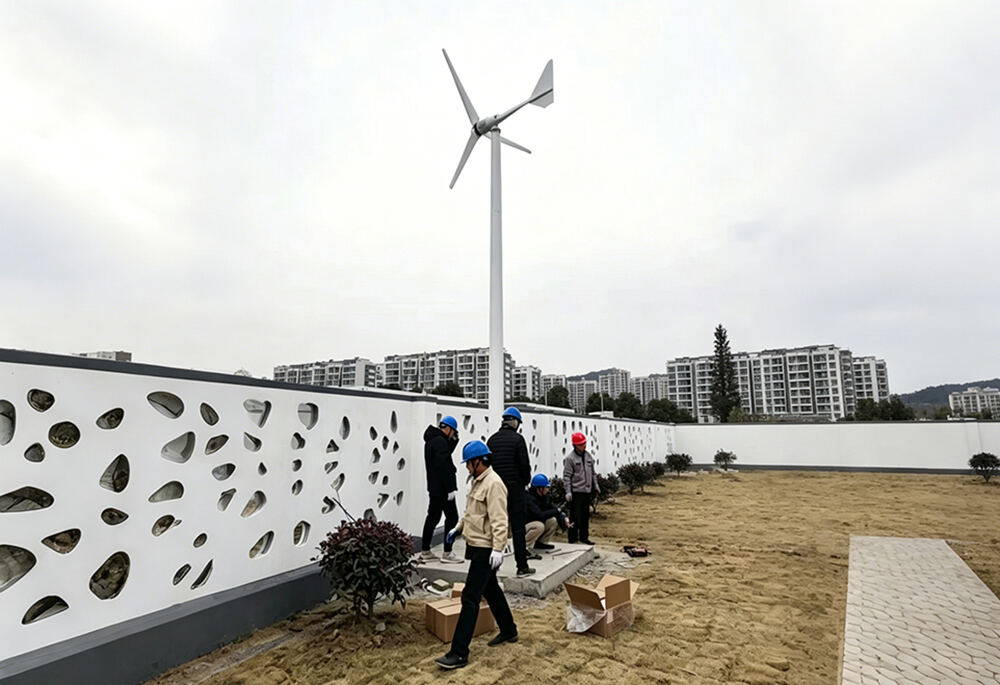

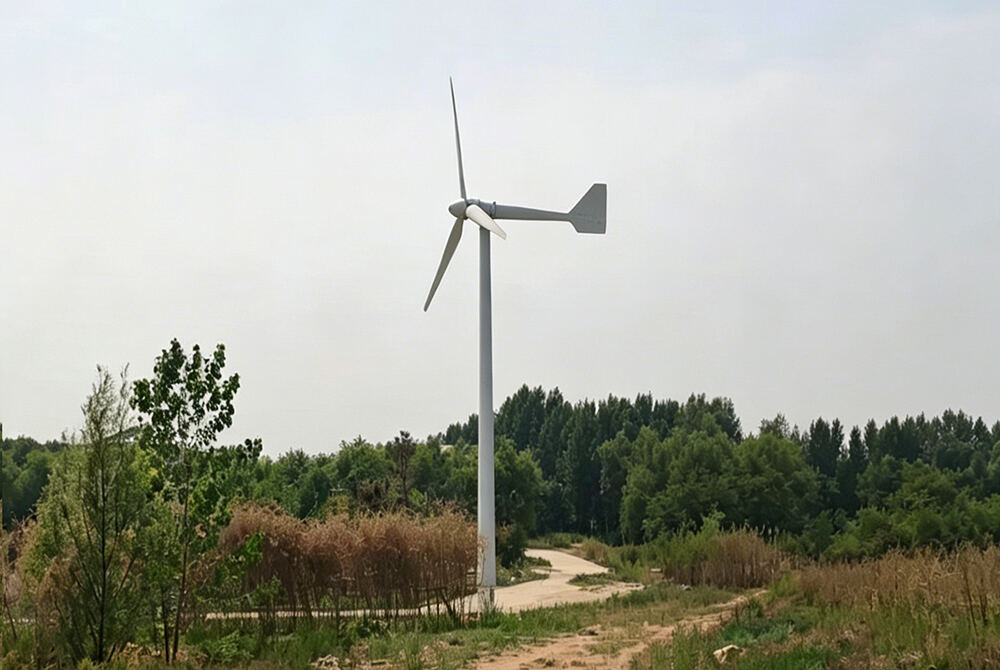

详情5.jpg 详情6.jpg
