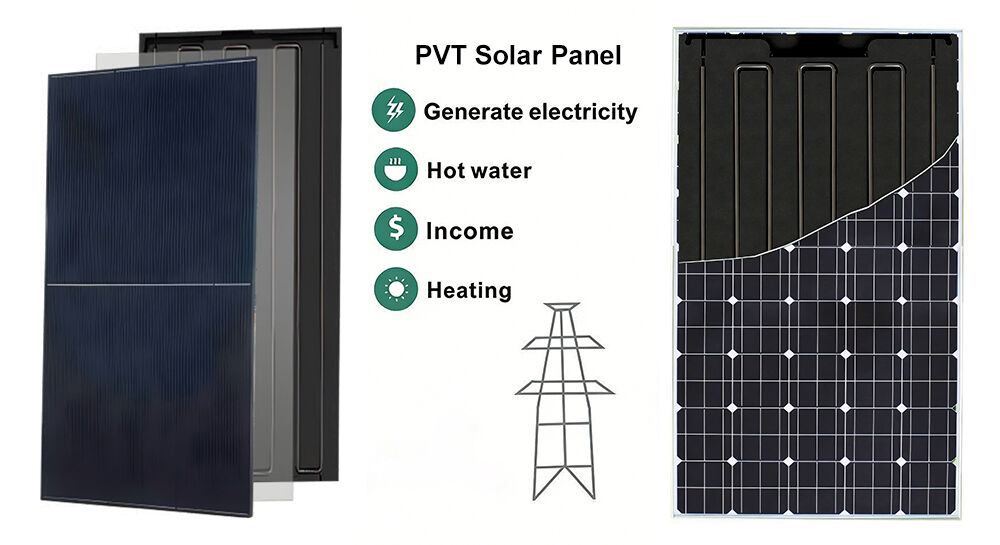

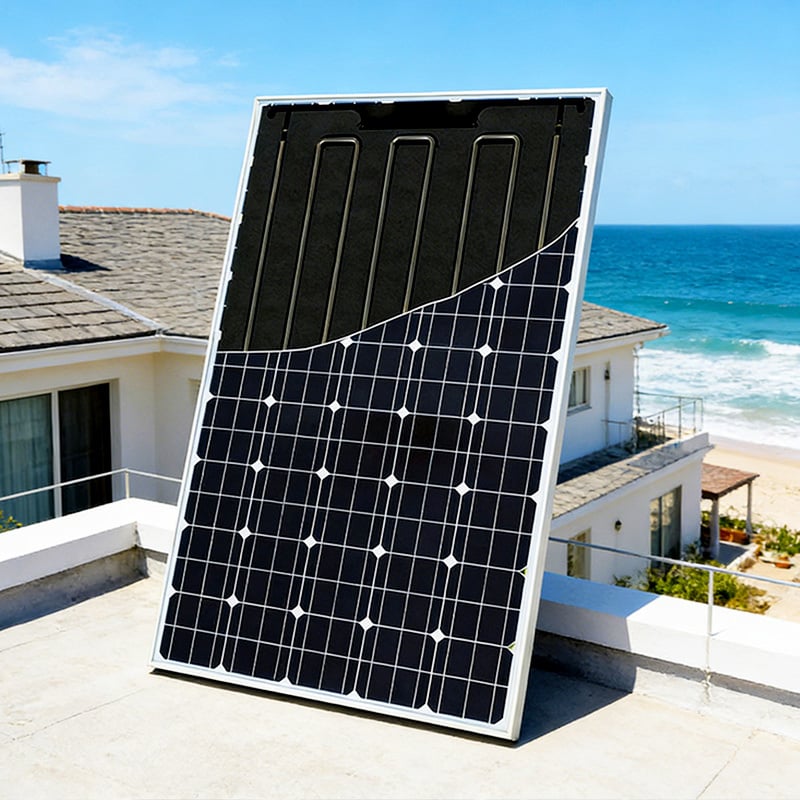

PVT solar panels are integrated photovoltaic and solar thermal panels. Unlike ordinary photovoltaic panels, they have built-in heat exchange channels, which not only absorb solar energy and convert it into electricity, but also recover waste heat generated during operation, achieving both power generation and heat production simultaneously.
Photovoltaic power generation has become a new energy trend in recent years, and photovoltaic panels are being used more and more widely. However, poor sunlight conditions in winter affect the power generation efficiency of ordinary photovoltaic panels. Therefore, there is an increasing demand in the market for photovoltaic panels that efficiently utilize winter sunlight conditions, and PVT solar panels are well-suited for use in low-temperature conditions.

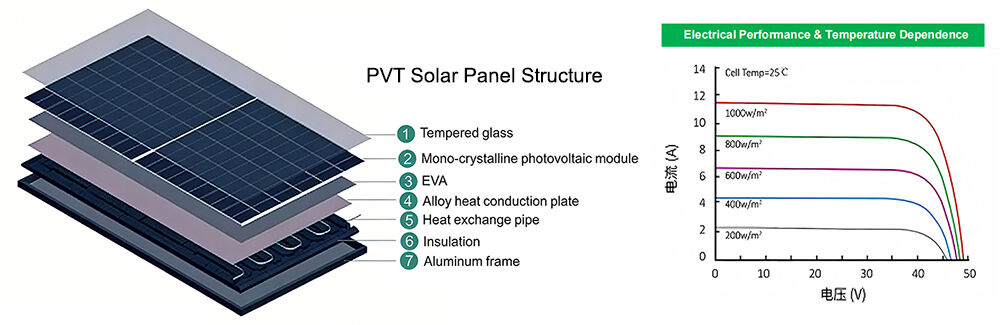

PVT solar panels completely break through the limitations of solely generating electricity, achieving higher efficiency in utilizing sunlight. The panels are robustly constructed, with an outer layer of high-strength tempered glass, making them wind- and hail-resistant, waterproof, corrosion-resistant, and long-lasting. They are easy to install and flexible in placement, suitable for most sites.
| STC | |
| Module Type | WF-PVT600 |
| Maximum Power (Pmax) | 35.44V |
| Maximum Power Current (lmp) | 16.93A |
| Open-circuit Voltage (Voc) | 43.77V |
| Short-circuit Current (lsc) | 17.83A |
| Module Efficiency STC (%) | 21.20% |
| Operating Temperature | -40℃~+85℃ |
| Maximum System Voltage | 1000/1500VDC(IEC) |
| Maximum Series Fuse Rating | 30A |
| Power Tolerance | 0~+3% |
| Temperature Coefficients of max | -0.35%/℃ |
| Temperature Coefficients of Voc | -0.29%/℃ |
| Temperature Coefficients of lsc | 0.048%/℃ |
| Nominal Operating Cell Temperature(NOCT) | 15±2℃ |
| Mechanical Characteristics | |
| Cell Type | Mono Perc 210 *105mm |
| No. of Half-cells | 120(6x20) |
| Dimensions | 2172x1303x35mm |
| Weight | 29KGS |
| Front Glass | 3.2mm Anti-Reflection Coating, HighTransmision, Low lron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP67 Rated |
| Output Cables | TUV 1x4.0mm2 |
| Packaging Configuration | 26pcs/pallet (Two pallets=One stack) |

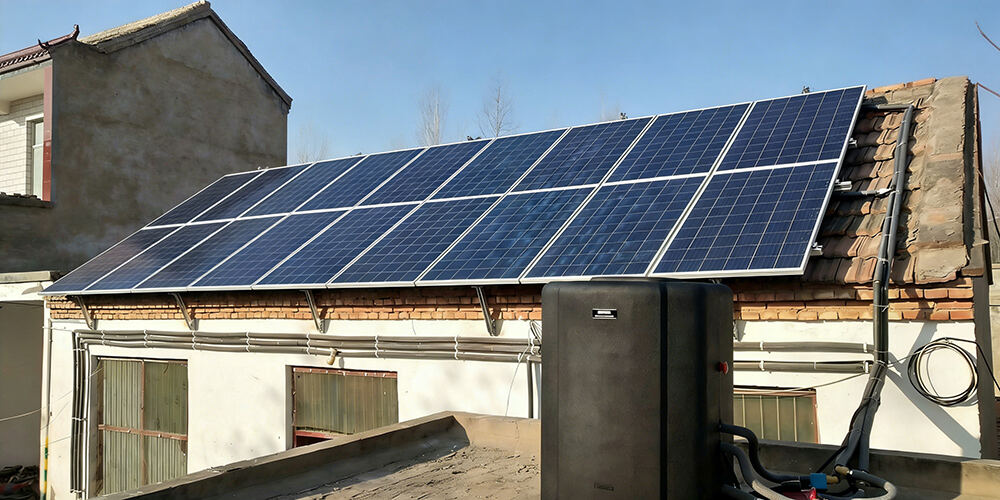

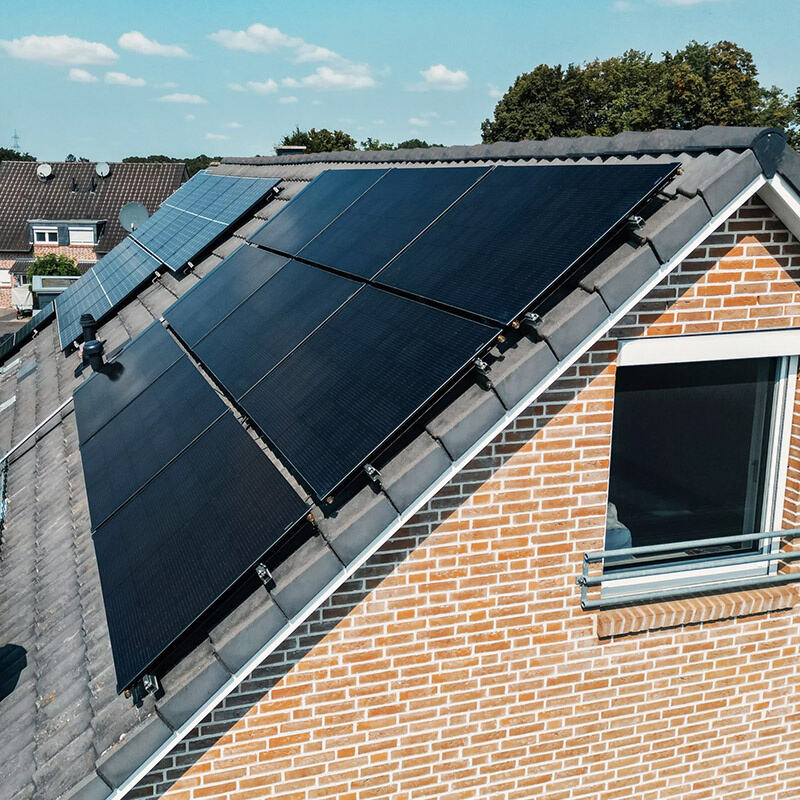

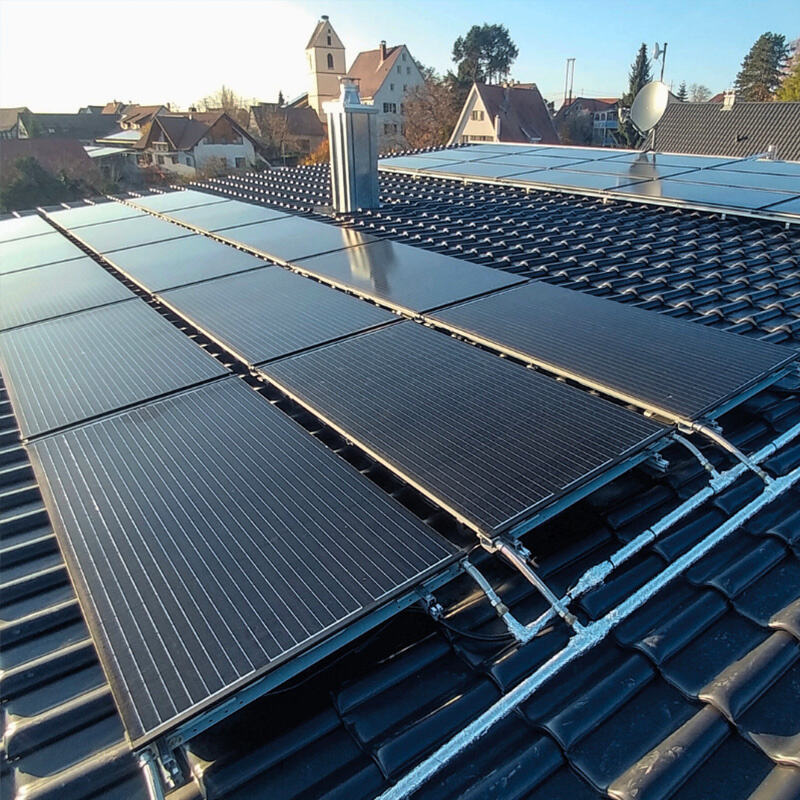

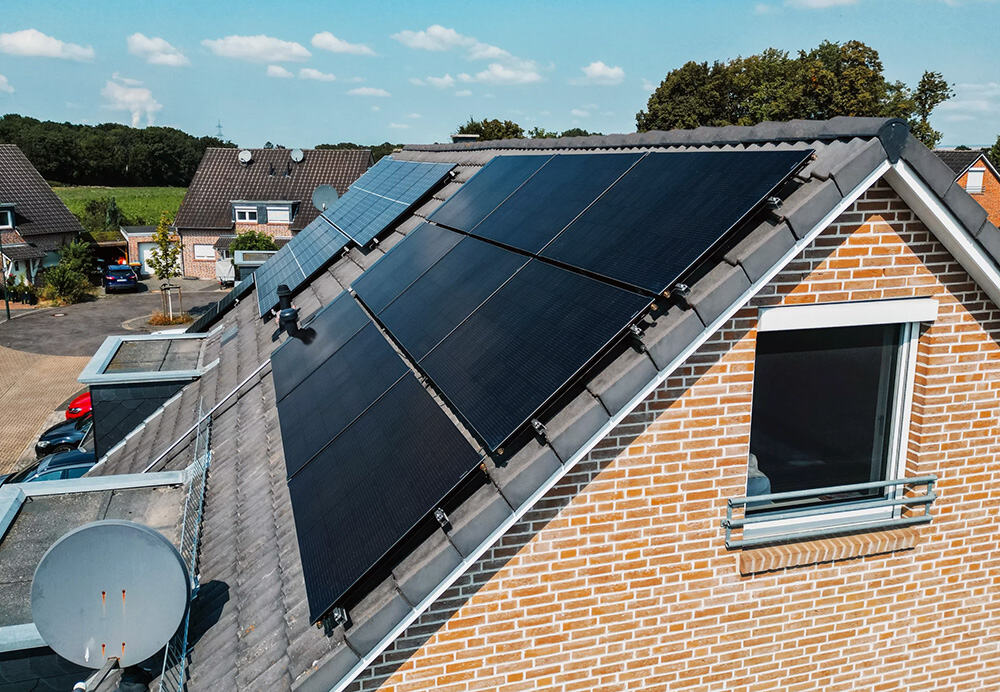

PVT solar panels has an exceptionally wide range of applications, suitable for residential, commercial, and project renovation projects. For detached houses, installing it on the roof saves space and generates its own electricity to meet daily needs, saving significant electricity bills. The recovered waste heat can also be used for hot water and heating, making it a multi-functional and cost-effective solution.

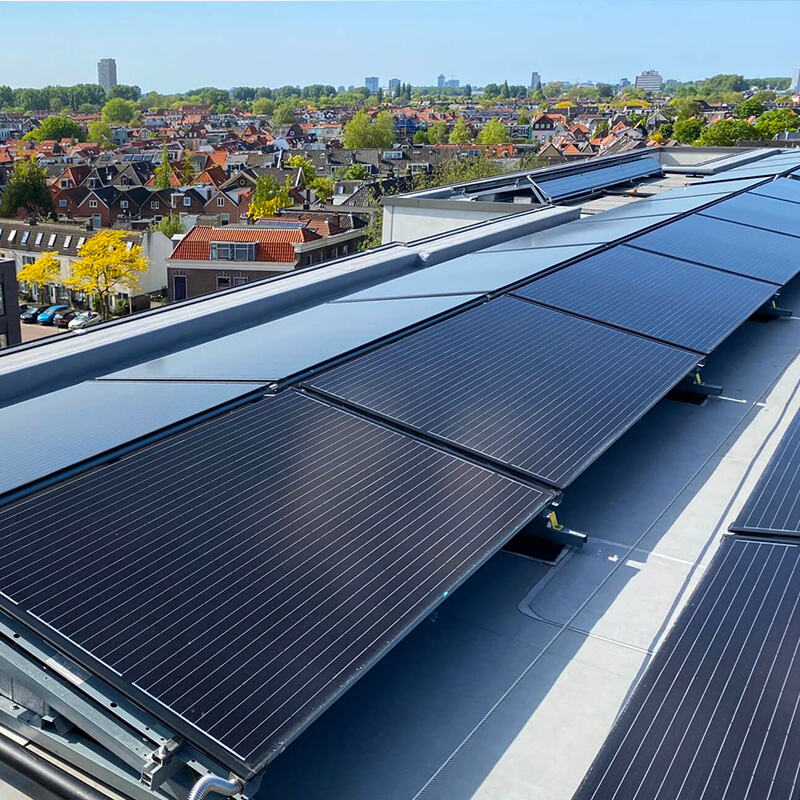

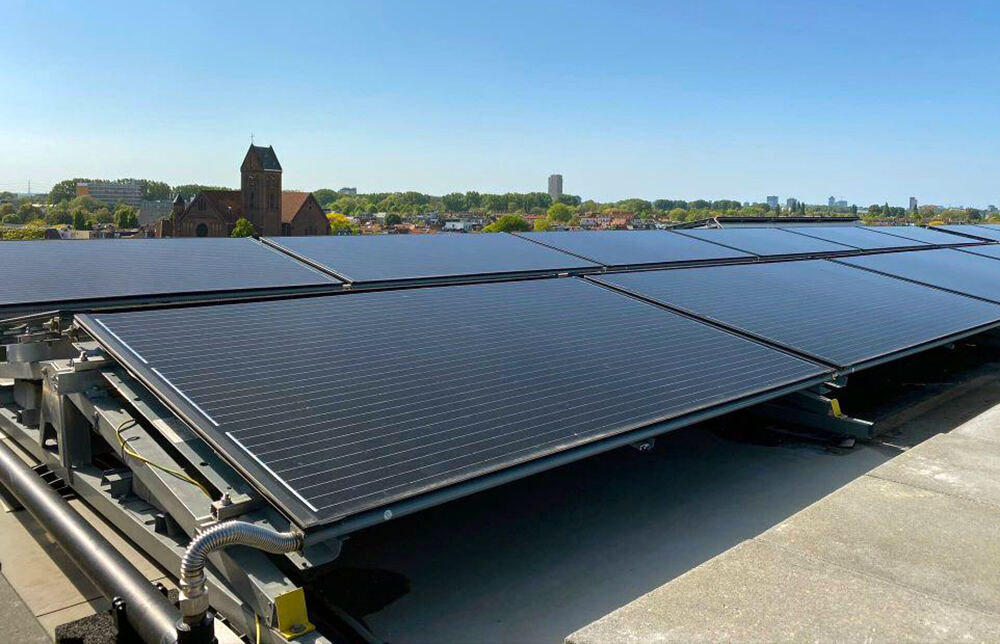

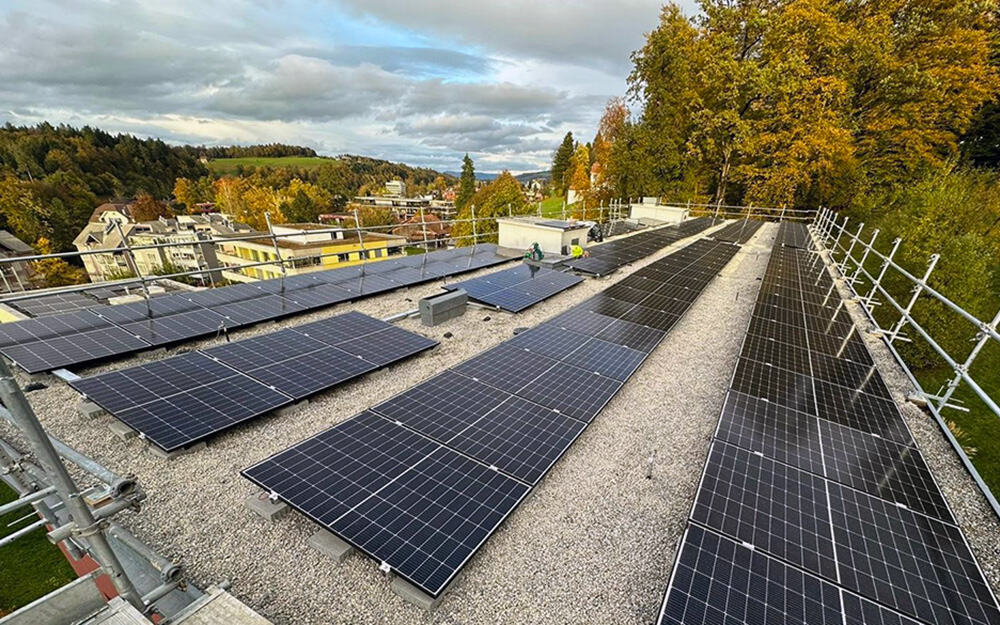

For commercial establishments such as schools, hotels, guesthouses, and office buildings, using it in conjunction with a heat pump can meet daily electricity, hot water, and heating needs, significantly reducing operating costs. Furthermore, it is also suitable for projects such as rural revitalization, zero-carbon community renovation, temperature control in agricultural greenhouses, and heating for livestock farms. As long as there is sufficient sunlight, it can be easily installed on both flat ground and sloping roofs, making it extremely practical.
The core advantage of this PVT solar panels is its combined photovoltaic and solar thermal efficiency, resulting in a significantly higher energy utilization rate than ordinary photovoltaic panels. It's equivalent to generating two benefits from one unit of solar energy, while simultaneously saving on electricity and heating costs.
Another feature of PVT solar panels is their excellent heat dissipation, preventing power generation efficiency degradation caused by high temperatures. This results in more stable power generation throughout the year, greater durability, and less frequent maintenance, saving you time and effort.
It's a purely green and clean energy source, meeting low-carbon and environmental protection requirements. Furthermore, it offers flexible installation without altering the existing building structure, low maintenance costs, and long-term benefits from a single installation. Whether for residential savings or commercial cost reduction, it's an excellent choice.
