Smart MPPT Wind Turbine Charge Controller

The wind controller is an indispensable component of a wind power generation system, crucial for ensuring stable power generation and preventing damage to the wind turbine. Its core function is "overall scheduling + safety protection," maximizing wind turbine power generation while protecting it from damage.

The wind controller monitors various data points in real time, including wind speed, engine speed, current, and voltage, automatically adjusting the turbine's operating status. When wind speed is too low, it activates a low-wind-speed adaptation mode to prevent idling and waste; when wind speed is too high, it promptly triggers speed limiting and braking functions to prevent overload and burnout.

Wind controller is small in size, extremely easy to operate, and precisely compatible with various wind turbine models. It features a built-in intelligent alarm function, providing timely alerts in case of malfunctions. Our controllers are pre-calibrated according to the wind turbine's parameters before leaving the factory to ensure optimal compatibility.

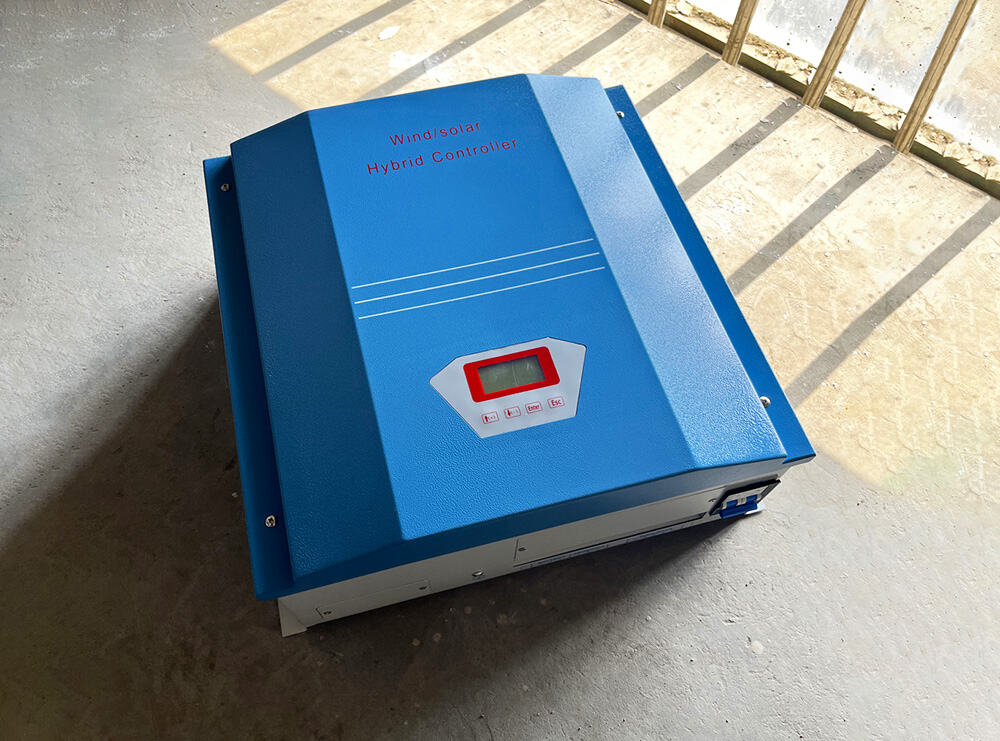

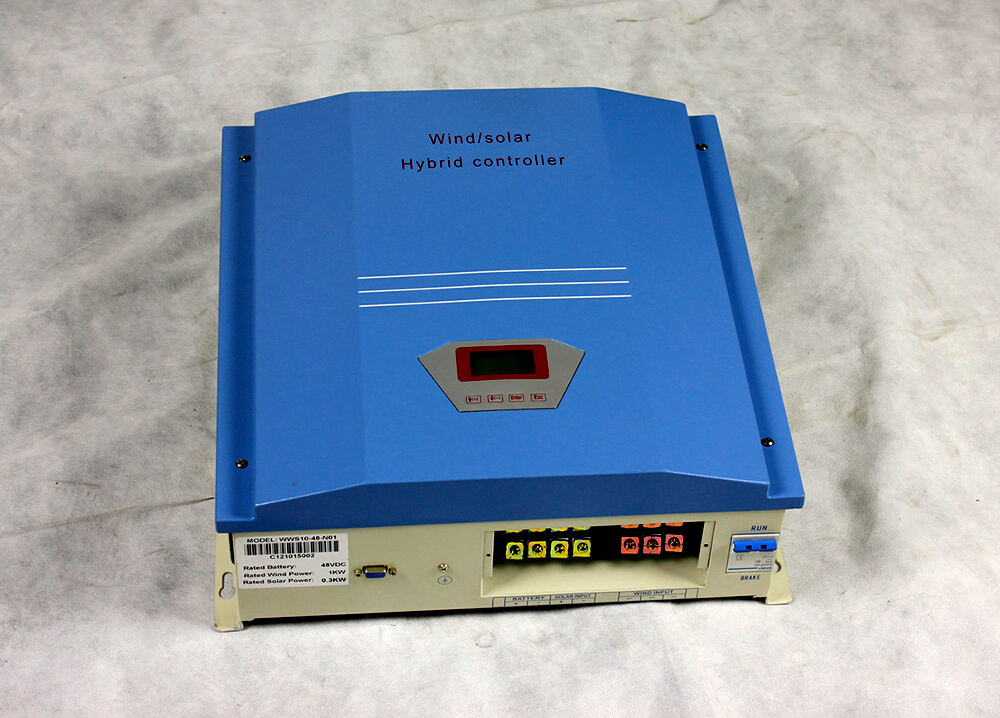

详情1.jpg 详情2.jpg

Model	WF-WWS20-48	WF-WWS30-48	WF-WWS50-48
Wind Turbine Input
Rated input power	2KW	3KW	5KW
Rated input voltage	48Vdc
Input voltage range	0~64Vdc
Rated input current	42Adc	63Adc	105Adc
PV Input
Rated input power	600W	900W	1500W
Max. Open circuit voltage	96Vdc
Rated input current	13Adc	19Adc	32Adc
Charge Parameters
Rated battery voltage	48Vdc
Output Parameters
Rated output voltage	48Vdc
Output overvoltage point	58Vdc
General Parameters
Display mode	LCD
Monitoring mode (optional)	RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee
Lightning protection	YES
Conversion efficiency	≥95%
Ambient temperature	-20℃~+40℃
Installation mode	Wall-mounted
Cover protection class	IP20		IP42
Product dimension (WHD)	420440175mm	440305170mm	440425170mm
Product net weight	12kg	7.5kg	12kg
Dump load dimension (WHD)		400390210mm	730390190mm
Dump load net weight		13.5kg	19kg

Wind controller has a very wide range of applications; they are essential wherever there are wind turbines. Small wind turbines can be installed on the rooftops of self-built houses or villas. Paired with a controller, they can stably regulate power generation, meeting daily household electricity needs and preventing damage to appliances due to voltage instability.

Small to medium-sized wind turbines installed in factories, communities, and other public places can also be equipped with wind controller to achieve stable power generation around the clock, ensuring power supply for production and operation, reducing reliance on the power grid, and lowering energy costs.

In remote areas, such as mountain outposts, field base stations, campsites, and agricultural greenhouses where the power grid is not available, wind controllers can provide full protection for wind turbines, ensuring normal operation and a stable power supply even in complex weather conditions such as strong winds and thunderstorms, solving outdoor power problems. The controllers are adaptable to various complex environments and require minimal maintenance.

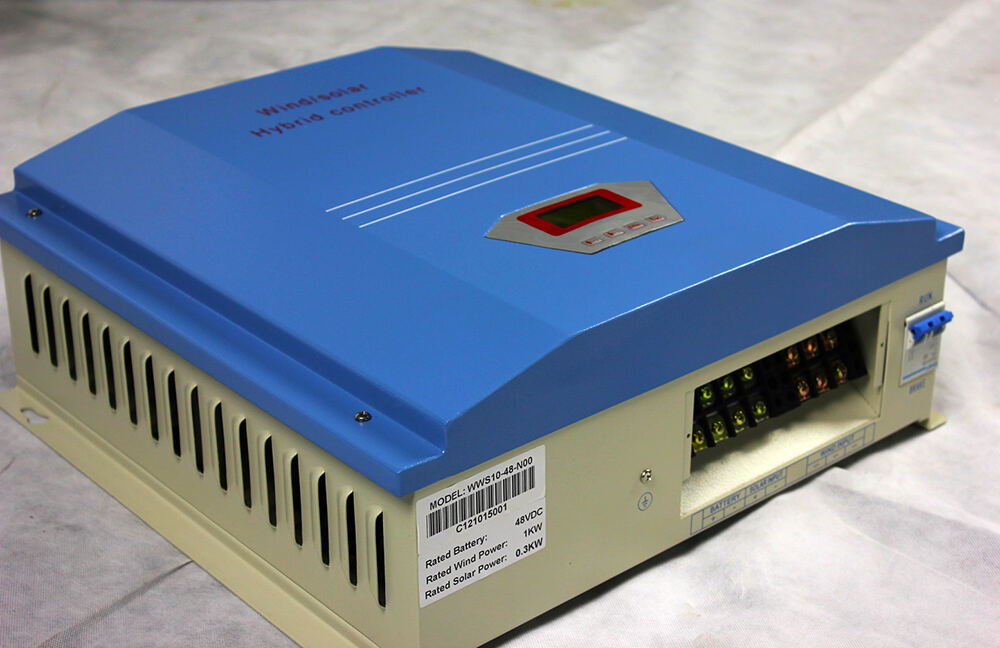

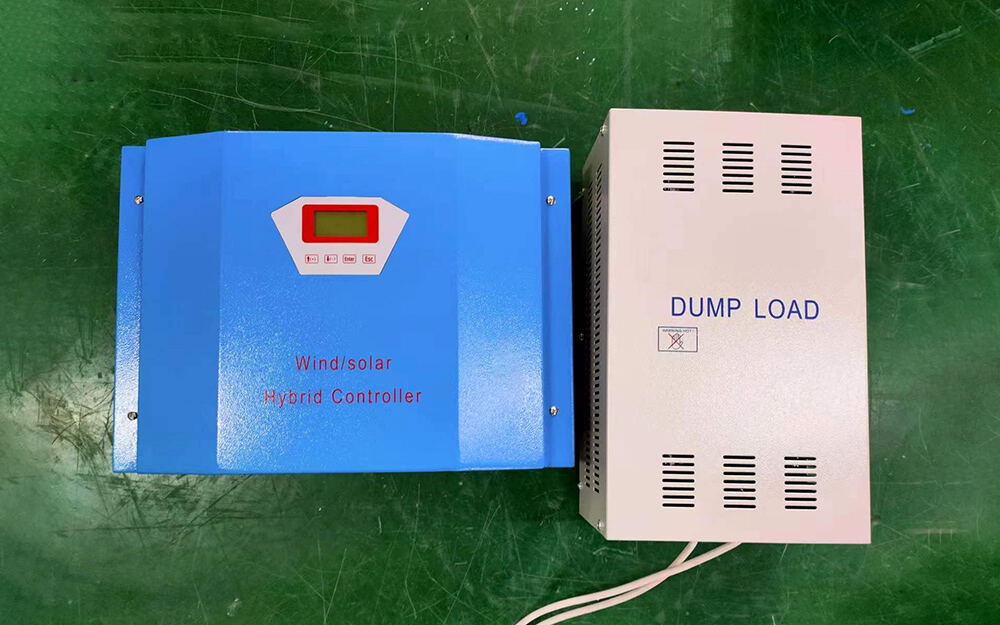

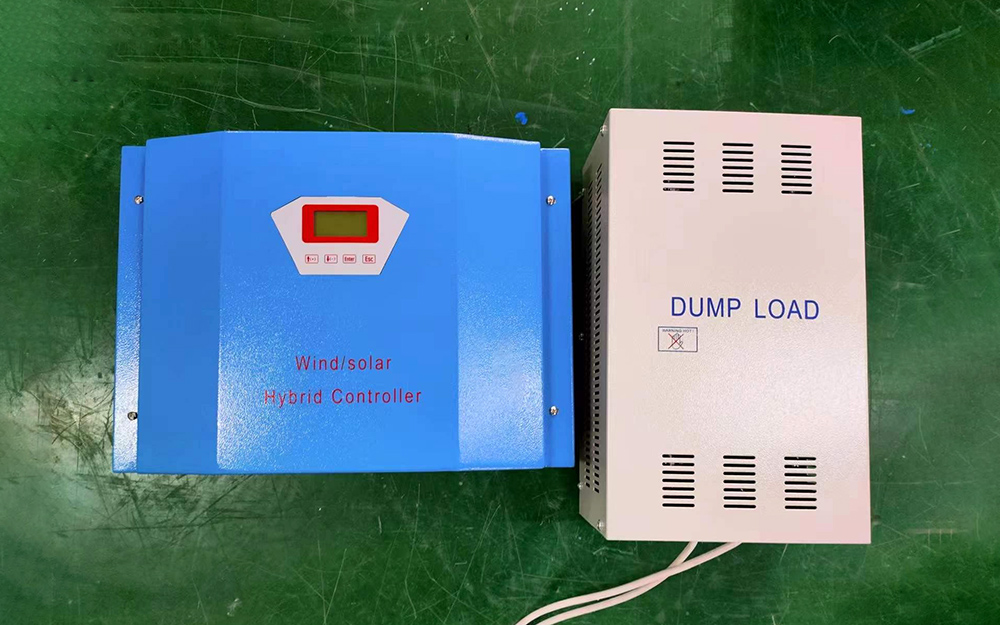

详情3.jpg 详情4.jpg

The wind controller is a product specifically designed to work with wind turbines to ensure their operation. Its function is intelligent regulation, real-time monitoring of various operating data, and automatic adaptation to wind speed changes to maximize the power generation efficiency of the wind turbine, ensuring no wind energy is wasted.

Another crucial function of the wind controller is to provide safety protection for the wind turbine, featuring multiple protections including overload, over voltage, short circuit, and lightning protection. It effectively prevents damage to the turbine and electrical components, reduces the failure rate, has a service life of over 10 years, and boasts extremely low maintenance costs.

This wind controller is highly compatible, fitting most small and medium-sized wind turbines on the market. It is simple to install, easy to operate, and energy-efficient. It operates intelligently throughout the entire process, allowing for remote monitoring of its operating status and timely alarms in case of faults. Balancing professionalism and convenience, it truly achieves "one-time installation, long-term peace of mind."

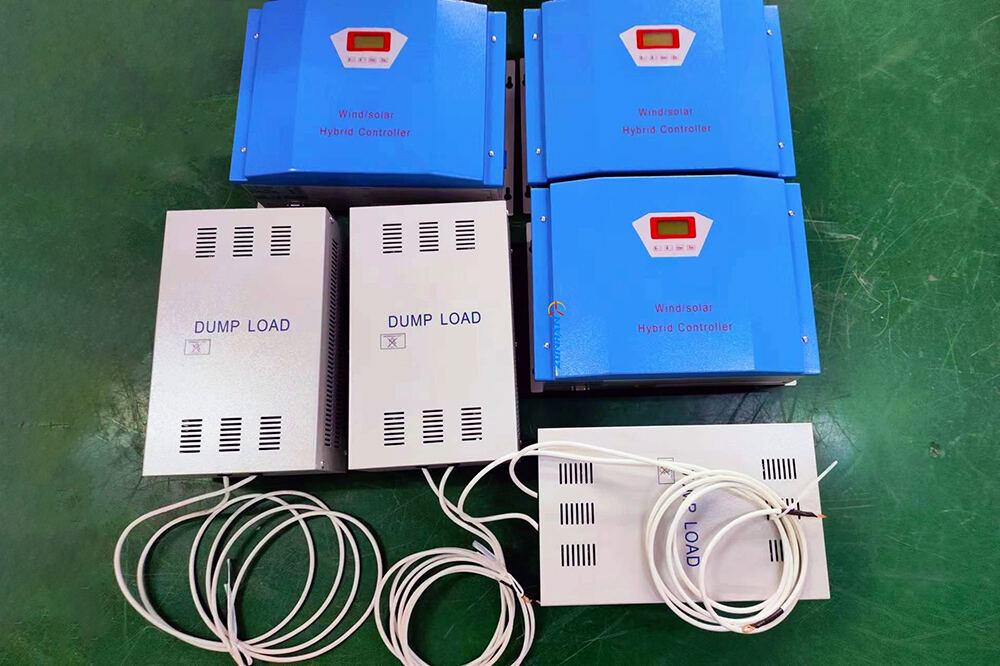

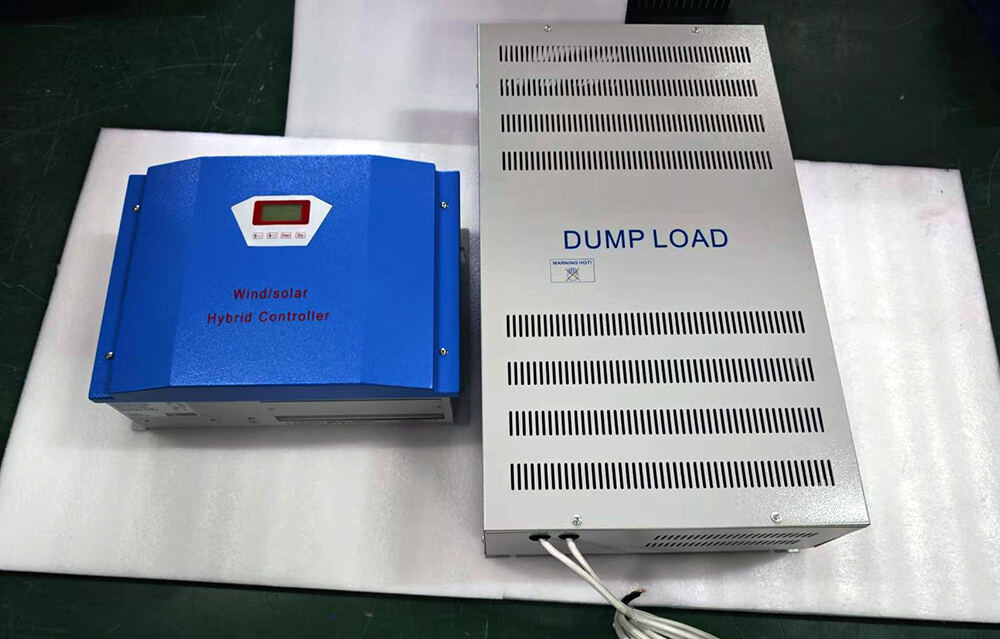

详情5.jpg 详情6.jpg
