Integrated PVT Solar Panel System

The PVT Heat Pump System is a truly "energy-free" home clean energy solution. Simply put, it connects solar panels and a heat pump in your home, creating a smart closed loop.

This system uses PVT solar panels. It's a technological upgrade from ordinary photovoltaic panels, as it can recover waste heat while generating electricity. It's like getting twice the utilization rate of one unit of sunlight, so its efficiency is greatly improved compared to ordinary photovoltaic panels.

The heat pump is a domestic air source heat pump, extremely quiet, with stable performance, specifically designed for home heating. It operates quietly and won't disrupt daily life. In addition to providing heating, this system also includes a water tank, providing basic hot water for daily needs, making it an essential household appliance in winter.

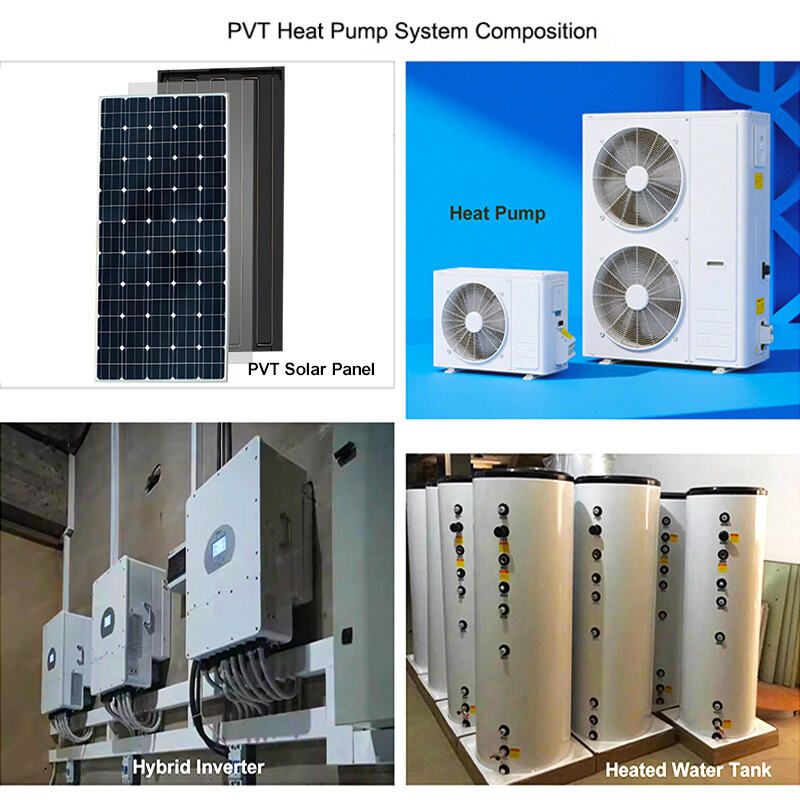

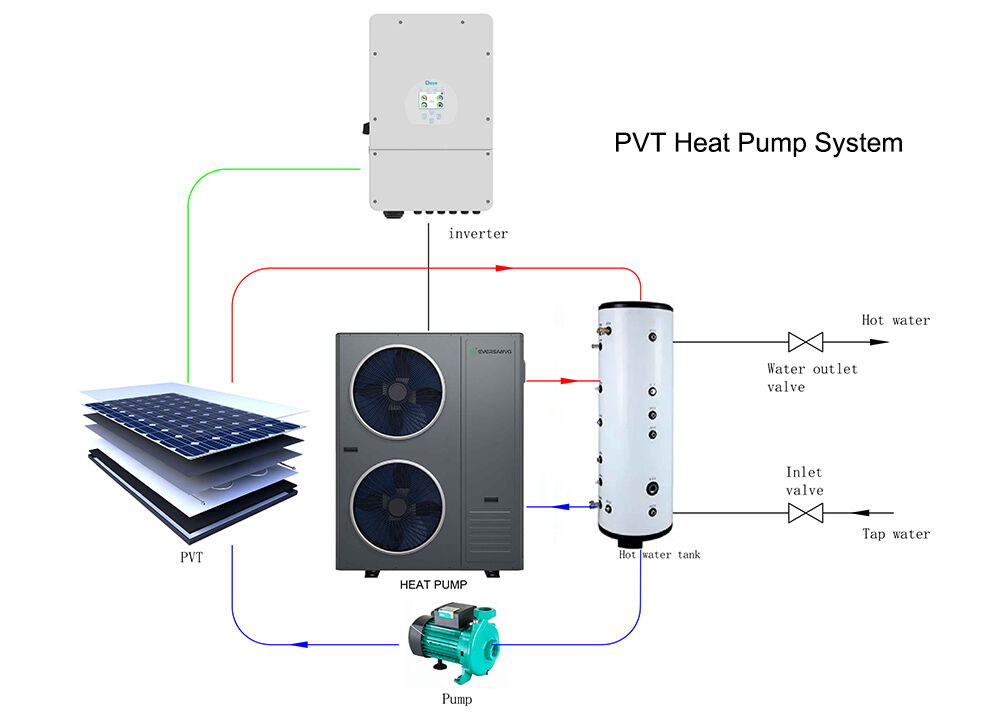

This PVT heat pump system isn't simply a combination of PVT solar panels and a heat pump; it features a dedicated hybrid inverter for intelligent regulation, ensuring the entire system is always at its most efficient.

The PVT heat pump system can be configured for either off-grid or grid-connected operation, depending on your specific needs. With a grid-connected system, excess electricity generated by the PVT solar panels can be directly sold to the grid. If you are far from the power grid or have an unstable local power supply and wish to install an off-grid system to ensure your daily electricity needs, we can also provide you with batteries of suitable power to store excess electricity for backup.

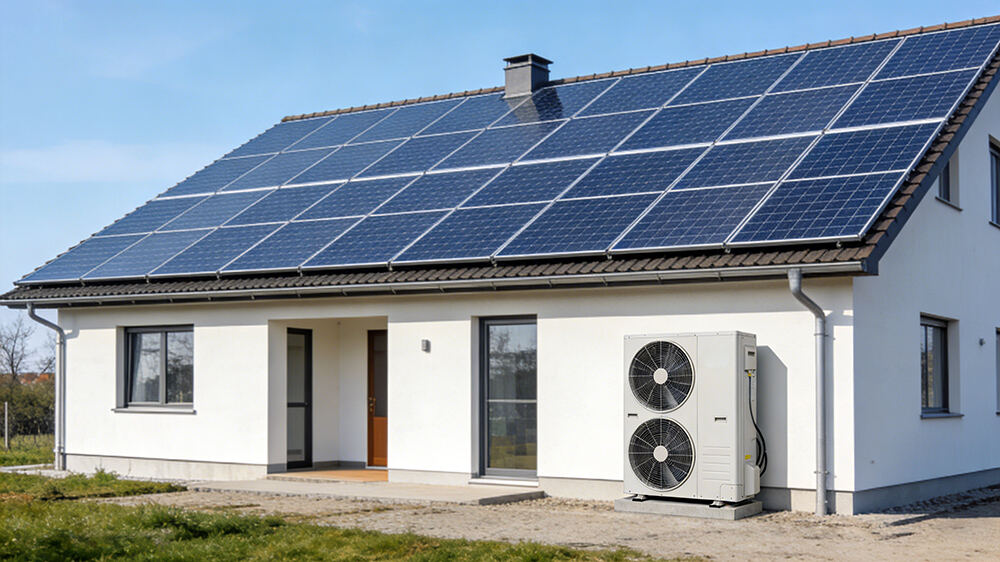

详情1.jpg 详情2.jpg

Household PVT Heat Pump System
Item	Qty	Specification	Remarks
PVT Solar Panel	14 pcs	600W*14pcs, total 8.4kW	Size: 2172130335mm
Hybrid Inverter	1 unit	8kW rated power	Grid/Off-grid optional
Heat Pump	1 unit	8P	Operating temp: -20~65°C
Water Tank	1 unit	300L capacity, max 80℃	stainless steel inner tank
Applicable area: 100-150 m²
Kindly Reminder The above system configurations are for reference only. We will design the system solution based on your installation conditions and actual requirements.

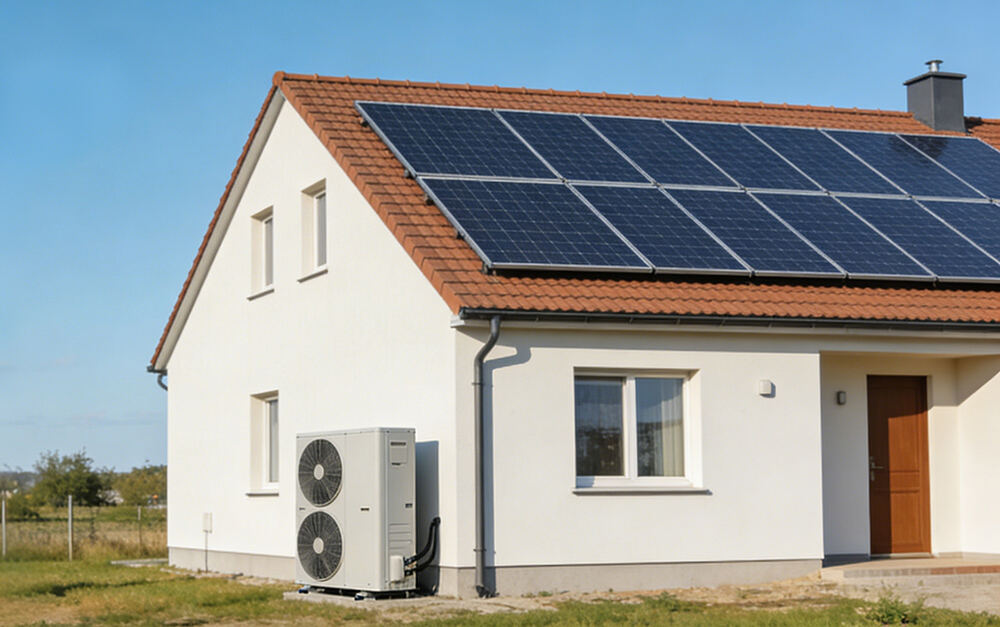

This PVT heat pump system is particularly suitable for home use. For detached houses, installing this system allows them to disconnect from the power grid, achieving self-sufficiency and independent power supply. It also provides heating and hot water during winter. In the long run, it can significantly reduce electricity and heating costs.

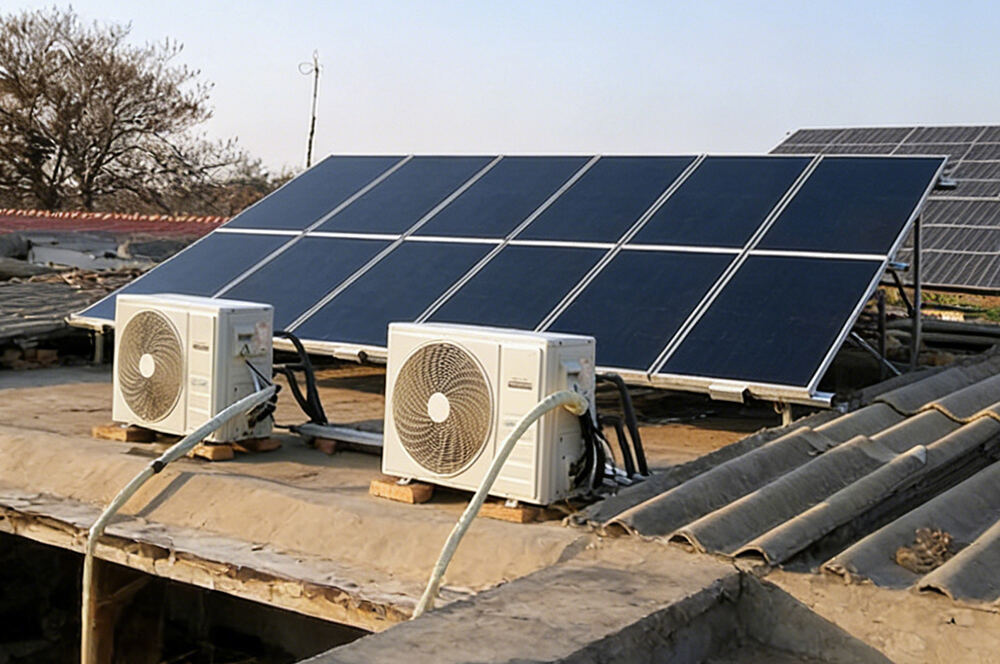

Besides home use, PVT heat pump system is also particularly suitable for shopping malls, communities, and other venues, where it can be installed centrally for power and heating. Furthermore, many farms, greenhouses, and other similar facilities choose to install this system to ensure the temperatures necessary for crop and plant growth. Therefore, its applications are very wide-ranging.

详情3-系统示意图.jpg 详情4-应用场景.jpg

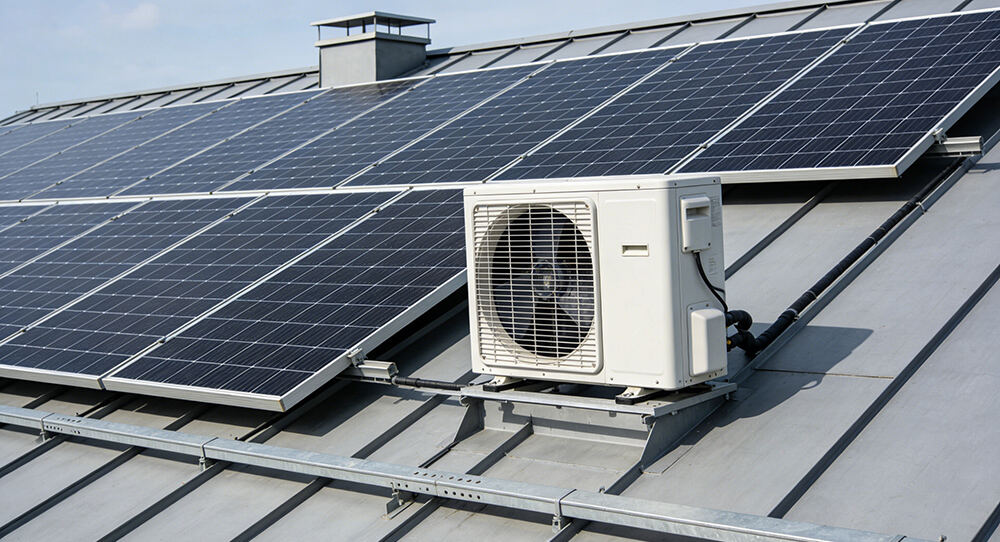

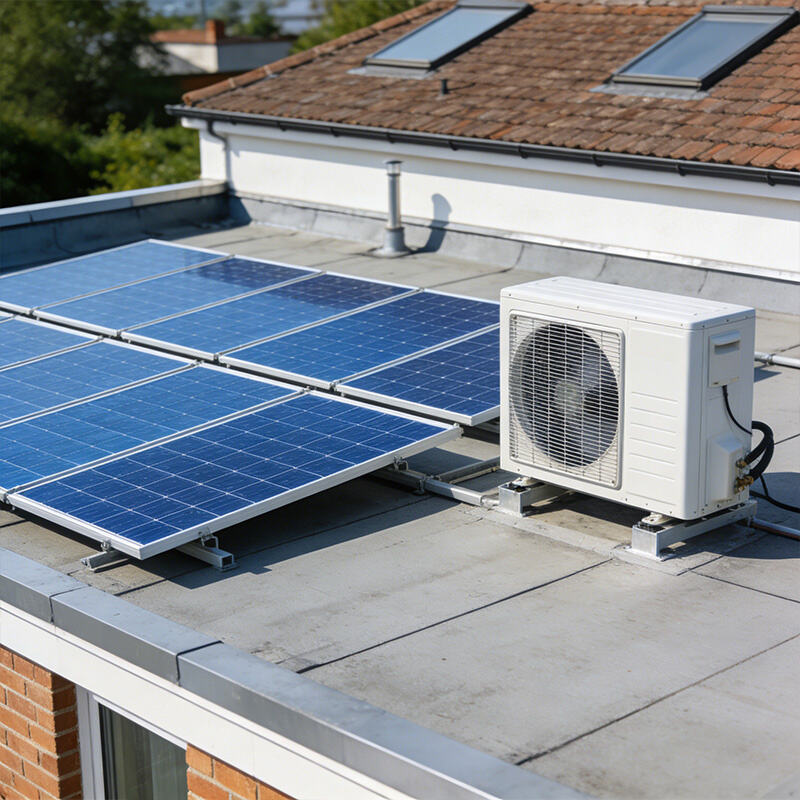

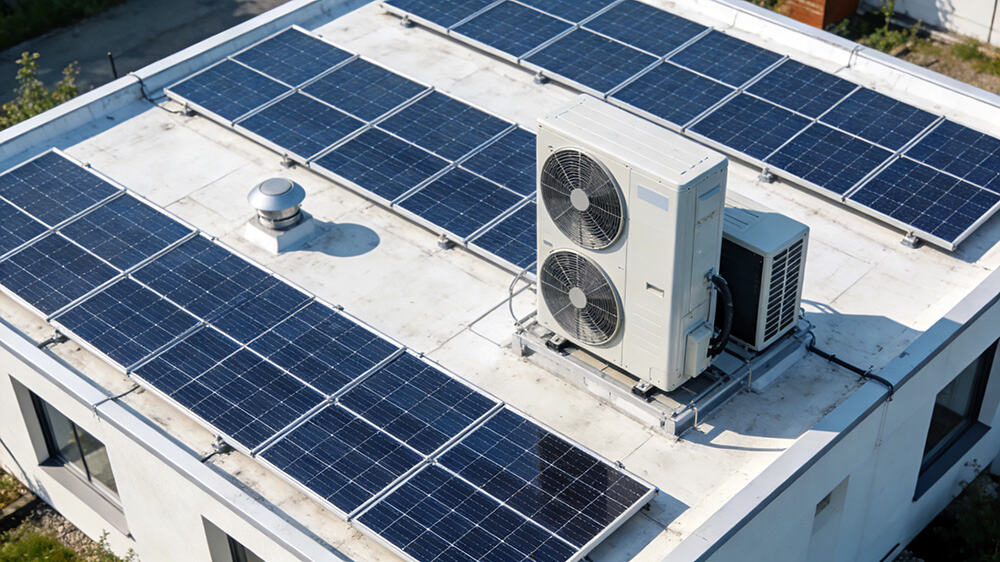

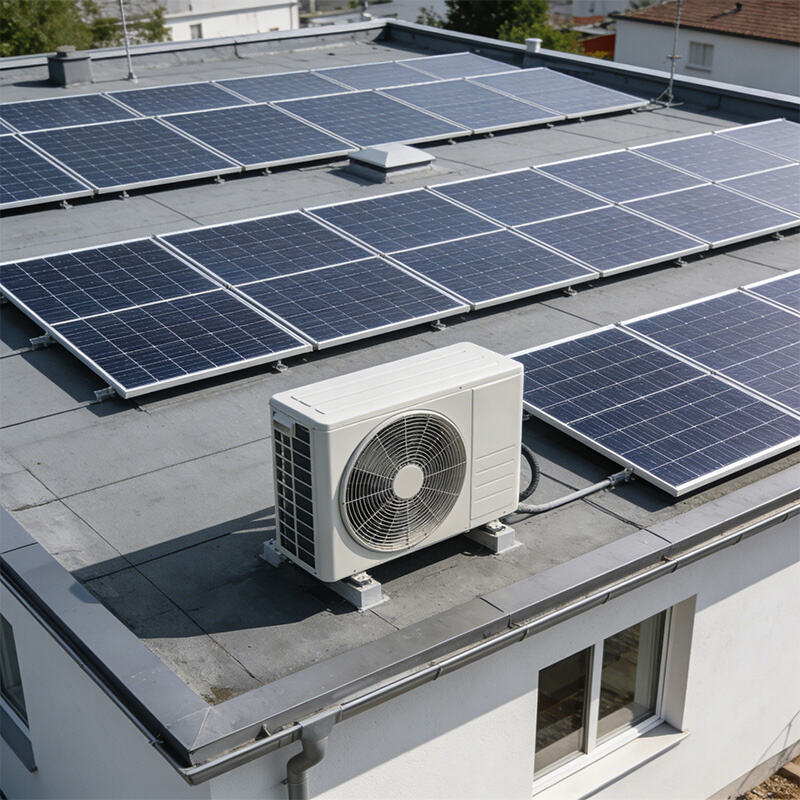

This PVT heat pump system offers highly flexible installation options. PVT solar panels can be installed on the ground, or even on flat or sloping roofs, saving space and offering a high degree of customization to perfectly suit the customer's specific needs.

Another major advantage is that it can basically achieve self-sufficiency in daily electricity and heating for users, no longer subject to the limitations of the power grid. This not only enables a low-carbon lifestyle but also saves on daily expenses such as electricity and heating costs in the long run.

All components of this PVT heat pump system are manufactured using high-quality materials and undergo rigorous performance testing before leaving the factory. They have a long service life, are easy to install and maintain, and represent a one-time investment with long-term benefits.
