PVT Solar Panel + Heat Pump System Solution for a 240㎡ House in Rome, Italy

One client is from Roma, Italy, his house is 240㎡, he want us to give him one solution which can supply heat+cooling+hot water, and also electricity for other load, around 20kwh per day.

What we have information for the system:

1. Annual peak sunshine ≈ 1500h, daily peak sunshine ≈ 4.0h

So The house’s winter design heat load is 17–22 kW for 240㎡,

2. For our output of PVT and PV as following

PVT Solar Panel: 600Wp (Power Generation) + 1416W (Heat Generation) per unit

PV Panel: 600Wp (Power Generation only) per unit

3. 2 Units of 6 HP Heat pump:

Total rated input power: 7.0–10.4 kW

Total actual operating power: 5.0–8.0 kW, daily work for 8hours,so it daily consumption is 52kwh or so .

4. except heat pump,there still need 20kwh to power the rest load.

5. via AI, we can learn normally there are 2-4 toilet room,4-6 person for 240m house.

Based on the data above,we can get following scheme:

1. 14 pieces of PVT solar panel,Total Heat Generation Capacity (PVT): 19.82 kW (14×1.416kW=19.824kw>17kw),

2. 18 pieces of PV Panel, Total daily output power:76.8kwh, it can cover: 52KWH + 20KWH (PEAK CONSUMPTION)

3. 20kw hybrid inverter : both ok for MPPT controller and load

4. 20kwh battery: which can keep working however night or rainy day

5. 1000L water tank also can storage surplus hot during day, reduce wasting and keep hot water enough for bath and other use.

So finally our scheme as following:

1. 14 pieces of PVT solar panel+18 Pieces of PV panel, both 600W/Piece as power and heating supply. PVT solar panel: Eversaving brand, PV panel: Jinke brand

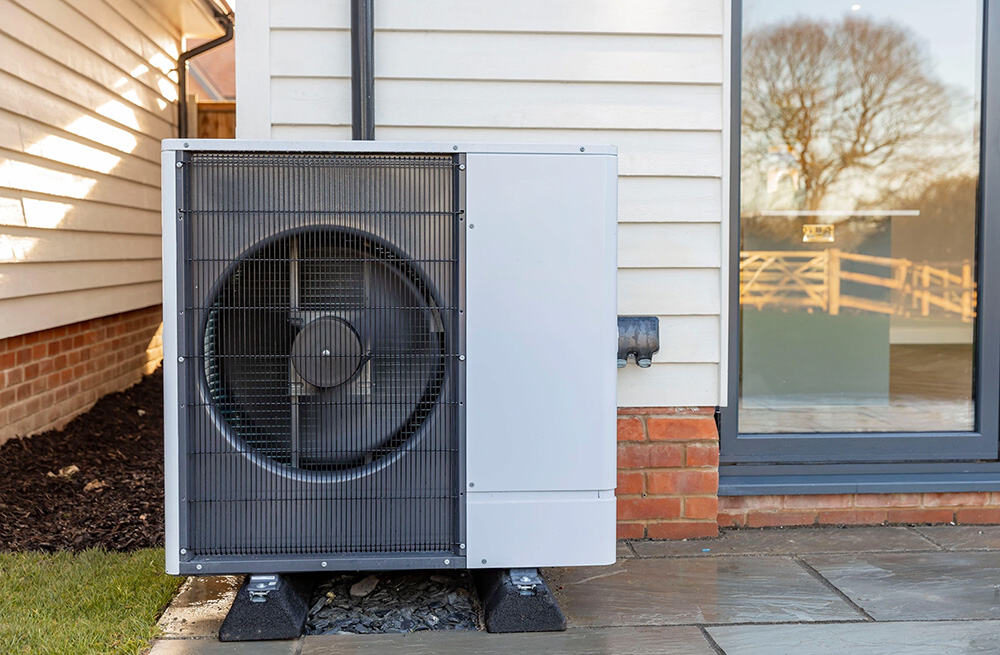

2. 2*6HP Heat pump, Eversaving brand

3. Water tank: 1000L, Eversaving brand

4. Battery storage inverter:20kw, Deye brand

5. Battery: 20KWH, 4 pieces of 51.2V200AH, GSO Brand.

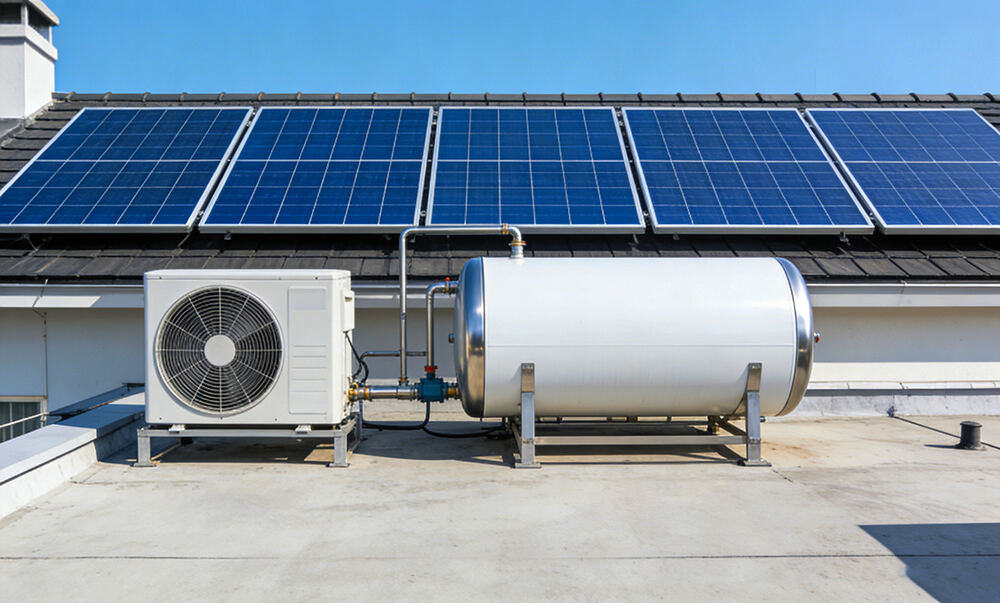

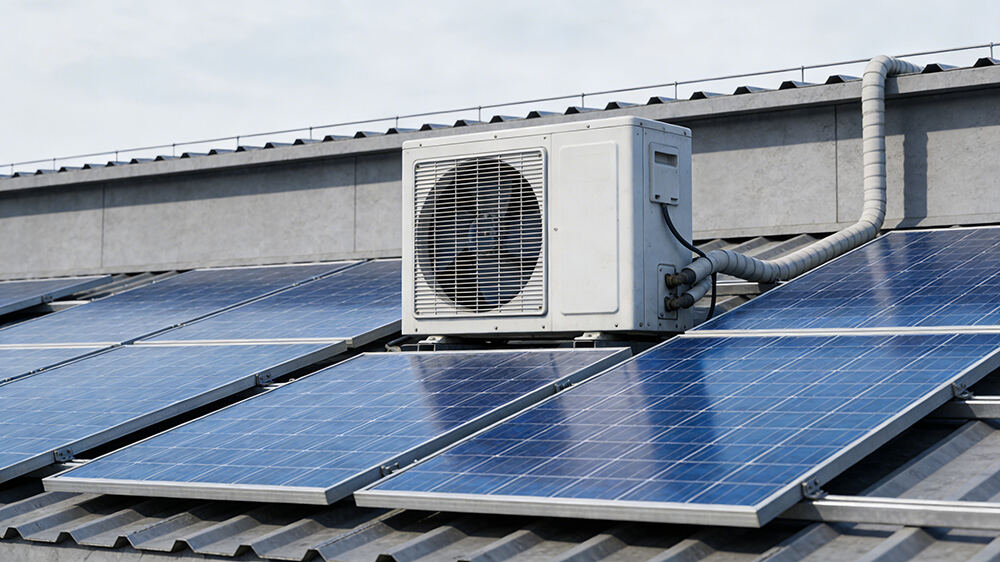

PV panel and PVT solar panel installed on the roof, water tank and battery installed in the room, to avoid heating waste, from the cargo brand, you can check all is from first brand and with quality guarantee, further more, except supplying above cargo, we also supply install service ,on line or on site.

So by first-class cargo, customized service, free design service, install guide service, on time after-sales service, we guarantee that our customers can use our products with peace of mind, confidence, and comfort.

after customer use, he felt very happy on the system, by which he reduced his electricity bill , With a sufficient supply of hot water, the house is warm and cozy in winter. More importantly, he even can sell excess electricity to the grid in summer, earning a small subsidy. Of course, his investment isn't so large, because he received a substantial government subsidy thanks to our plan.

Act as PVT solar panel +Heat pump supplier, we always keep our value: bring you more green energy, bring the world more green. To meet our customers' demand for zero electricity costs, we are constantly innovating.Through the continuous efforts of our technical staff, we have launched a comprehensive solution combining wind, solar, energy storage, and heat pump. This solution provides a zero-carbon solution for customers who do not have enough space to install solar power.

You are welcome to contact us for more details.
