R290 50kW Commercial Heat Pump

Against the backdrop of the current global energy transition and increasingly stringent environmental regulations, seeking cost-effective and sustainable HVAC (heating, ventilation, and air conditioning) and hot water solutions has become a key consideration for users. This commercial heating and cooling heat pump is designed to meet this market demand; it is a highly efficient, green, and intelligent commercial heating solution.

The core advantage of this commercial heating and cooling heat pump lies in its use of R290 natural refrigerant. As an environmentally friendly refrigerant with zero ozone depletion potential (ODP) and a Global Warming Potential (GWP) of only 3, R290 offers significant environmental advantages compared to traditional R410A and R32, reducing carbon emissions by up to 99.5%. This not only allows it to perfectly comply with the stringent standards of EU environmental directives but also provides long-term assurance for enterprises' green transformation.

This commercial heating and cooling heat pump not only leads in environmental technology but also boasts extremely stable performance. It integrates advanced EVI (Enhanced Evaporation Enthalpy) technology, maintaining efficient and stable operation even under extreme climatic conditions. The compact structural design combined with industrial-grade durable materials ensures that the heat pump maintains an extremely low failure rate even under years of high-intensity commercial use.

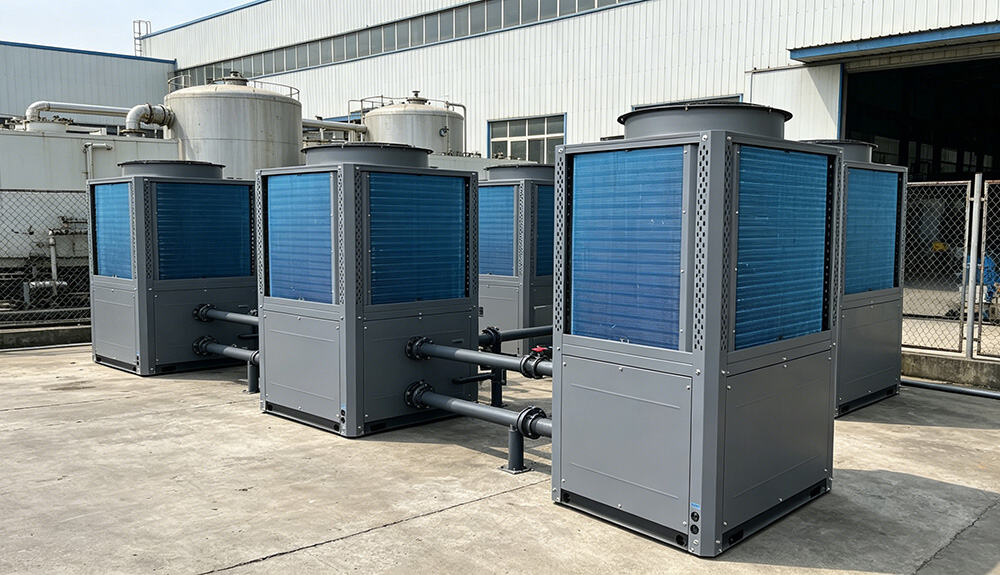

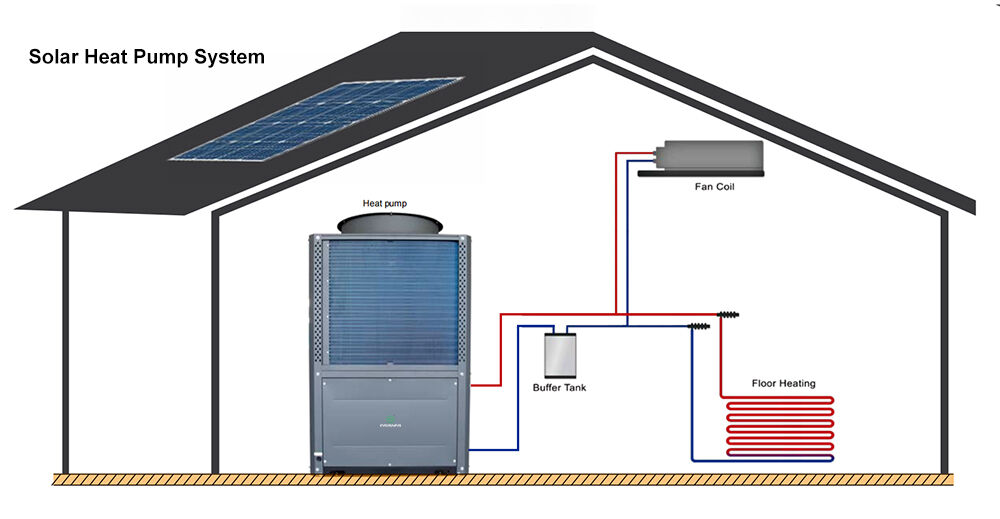

详情1.jpg 详情2.jpg

Model			WF-BLN-050TC3
Power Supply		V/Ph/Hz	380~415/3/50
Nominal Heating (Max)(A7/6℃,W30/35℃)	Heating Capacity	kW	17.56~50
	Power Input	kW	2.61~12.88
	Current Input	A	5.46~18.8
Nomina Heating(Max)(A7/6℃,W47/55℃)	Heating Capacity	kW	17.95~49
	Power Input	kW	3.48~172
	Current Input	A	7.78~26.8
Nominal Cooling (Max)(A35/24℃,W12/7℃)	Cooing Capacity	kW	10~35
	Power Input	kW	3.84~14.50
	Current Input	A	6.42-20.56
ERP Leve (Outlet water temperature at 35℃)		/	A++
MAX.input power		kW	19.84
MAX.input current		A	30.30
Refrigerant/GWP		/	R290/3
Rated water flow		m³ h	8.60
Fan quantity		/	1
Fan motor type		/	DC inverter
Compressor		/	DC irverter
IP Class		/	IPX4
Sound pressure at 1m distance		dB(A)	65
Max outlet water temperature		℃	75
Water piping connections		/	DN 40(G1-1/2')
Water Pressuredrop (max)		kPa	65
MinMax Water Pressure		MPa	0.1/0.3
Operating temperature range (Heating mode)		℃	-25~45
Operating temperature range (Cooing mode)		℃	16~45
Unpacked Dimensions (LDH)		mm	1155×990x1880
Packed Dimensions (LDH)		mm	1238x1058x2033
NetWeight		kg	500
PackedWeight		kg	540
Container Loading quantity(20GP/40GP/40HQ)		/	10/22/22

This commercial heating and cooling heat pump is specifically designed for commercial and public buildings requiring large capacity, high stability, and precise temperature control:

1. Hotels and Resorts: While providing high-quality domestic hot water, the system's parallel operation easily meets peak-hour bathing water demands and significantly reduces boiler room operating costs.

2. Office Buildings and Complexes: Provides a comfortable and quiet heating experience for modern office environments. This heat pump's ultra-quiet design (sound pressure level ≤50dB) ensures no disturbance to the indoor work atmosphere.

3. Industrial and Manufacturing Facilities: In large spaces such as industrial plants and warehouses, the high outlet water temperature (up to 75°C) of the R290 heat pump meets the specific needs of process production or large-area heating.

4. Medical and Healthcare Institutions: Hospitals and nursing homes have extremely high requirements for environmental temperature stability and domestic hot water. This heat pump's 24-hour constant temperature supply system provides reliable logistical support.

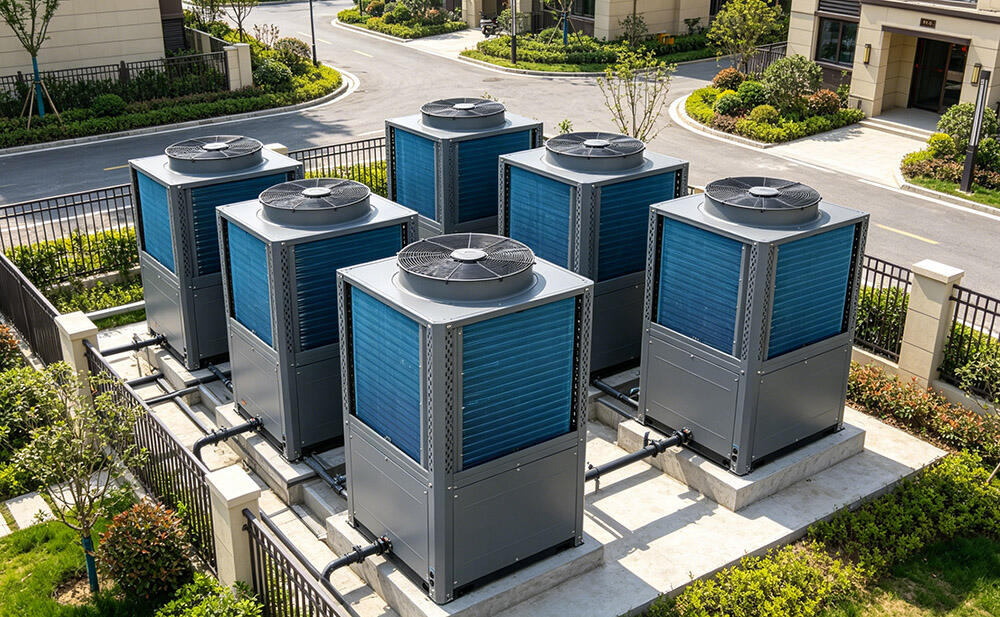

Furthermore, this commercial heating and cooling heat pump supports flexible parallel operation of up to 16 units, allowing for easy expansion as needed based on project scale. This excellent scalability makes it an ideal choice for medium to large-scale commercial projects.

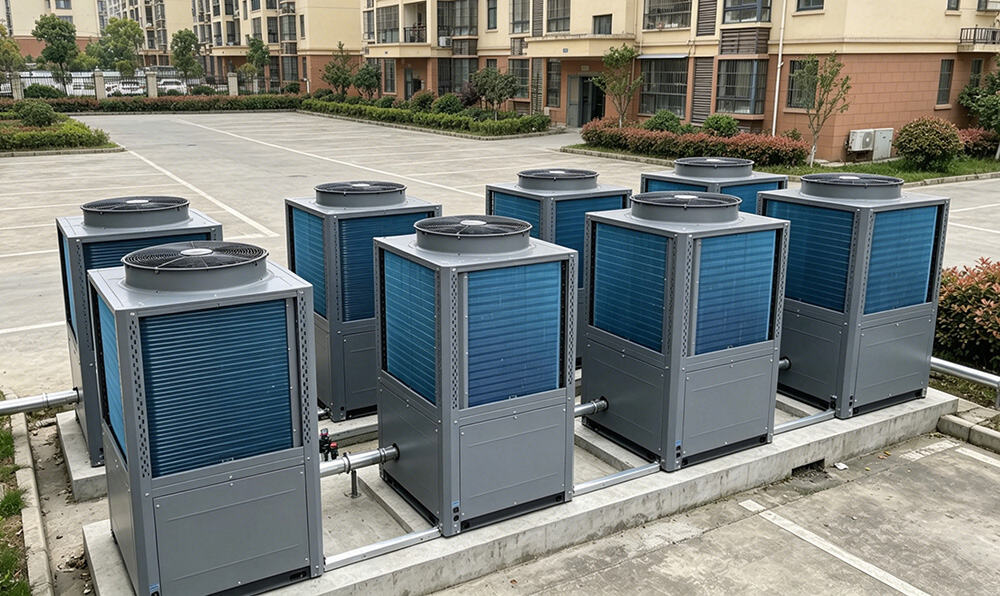

详情3.jpg 详情4.jpg

Extreme Energy Saving, Reducing Operating Costs by Over 30%

Thanks to its efficient inverter technology and optimized system design, this commercial heating and cooling heat pump boasts a COP (Coefficient of Performance) of 4.8+. Compared to traditional gas boilers or ordinary heat pumps, it can save customers approximately 30-40% on energy expenditures annually, typically recovering the investment cost within 18-24 months.

Exceptional Performance in Extreme Climates

This commercial heating and cooling heat pump can still provide powerful heating in frigid environments as low as -25°C, exhibiting strong operational stability and a long service life.

High-Temperature Output Water, Seamless Boiler Replacement

The heat pump maximum output water temperature reaches 75°C, meaning it can be directly connected to existing radiators or hot water circulation systems without requiring large-scale modifications to existing terminal equipment, significantly reducing renovation costs.

Intelligent IoT Monitoring and AI Control

This heat pump integrates advanced IoT technology, users can monitor energy efficiency and diagnose faults in real time via smart terminals. AI intelligent algorithms can automatically adjust operating strategies based on real-time load, ensuring that every kilowatt-hour of electricity is used to its maximum efficiency.

Quiet Operation, Environmentally Friendly

Through optimized airflow design and acoustic noise reduction technology, the heat pump's operating noise is greatly controlled, allowing it to coexist harmoniously with the environment even when installed near noise-sensitive buildings.

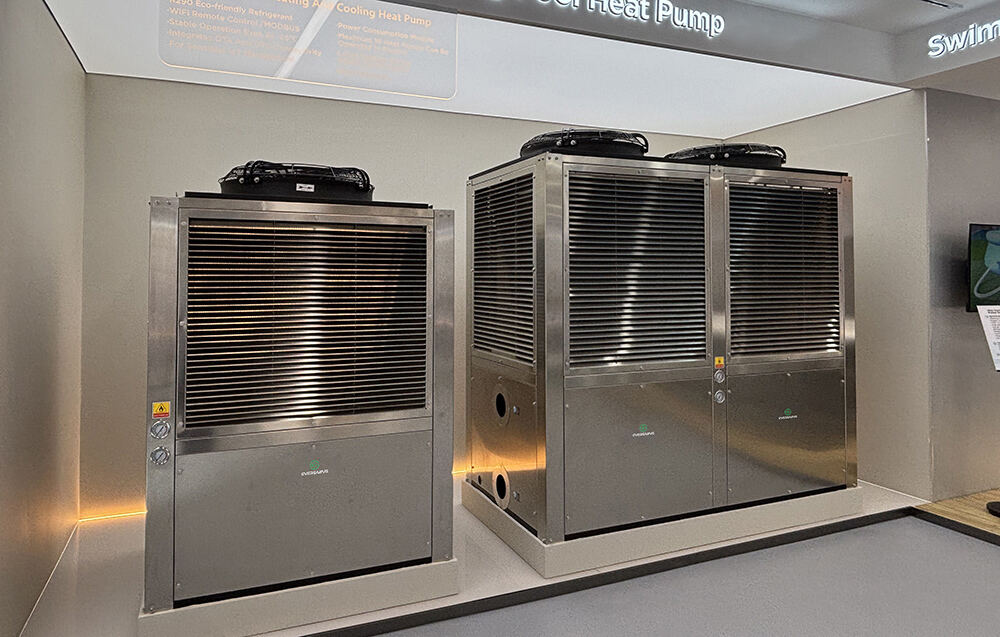

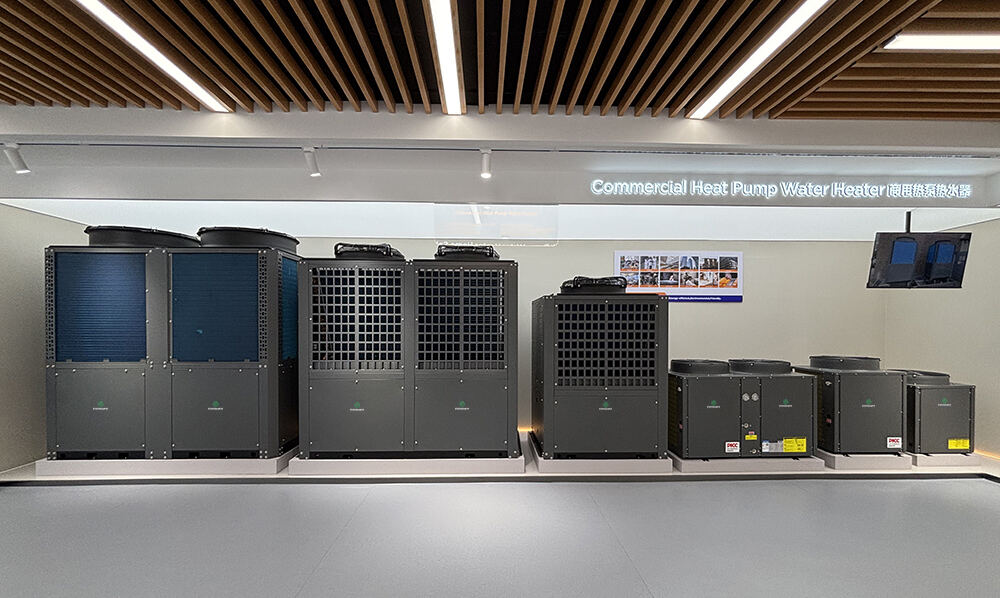

详情5.jpg 详情6.jpg
